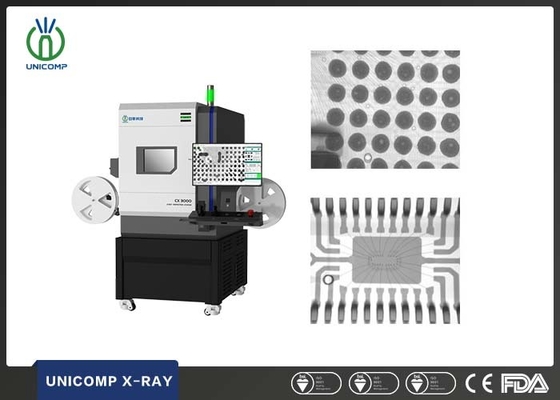

SMT PCB Portable X-Ray Machine , Metal Detector X Ray Machine 0.5kW Power Consumption
Product Details
digital x ray machine
,x ray cabinet system
Portable x-ray machine SMT PCB Metal X Ray Machine for Philippines
| Item | Definition | Specs |
| System Parameters | Size | 750(L)x570(W)x890(H)mm |
| Weight | 300kg | |
| Power | 220AC/50Hz | |
| Power Consumption | 0.5kW | |
| X-ray Tube | Type | Closed |
| Max.Voltage | 100kV | |
| Max.Power | 200μA | |
| Spot Size | 5μm | |
| Detector | Intensifier | FPD |
| X-ray Coverage | 48mm x 54mm | |
| Resolution | 208Lp/cm | |
| Work Station | Max.Loading Size | 200mm x 200mm |
| Max.Inspection Area | 200mm x 200mm | |
| Oblique Angle Views | 360° rotary fixture (Optional) | |
| X-ray Leakage | <1μSv/h | |
Product Application
X ray testing equipment PCB x-ray machine system have enabled fabricators of multi-layer PCBs to enhance product quality and control cost. The detection of high-definition video make you find out the joints open, short, voids and other defects at a glance.
X-ray inspection enables users to control cost by eliminating defective board early in the production process.
Training
Training will include:
Basic Radiation Safety.
X-Ray system control functions.
X-Ray image processing software training.
Basic X-ray signature analysis training.
Hands-on sample analysis using your typical samples.
Training certificates for all attendees.
OUR SERVICE
1.Your inquiry will be replied in 12 hours.
2.Original Manufacture to customers, with competitive price.
3.We provide one year warranty, free training and whole life technology support.
4.We can arrange the shipment by air, DHL,Fedex, UPS, and by Sea,etc for you, and will give you the tracking NO. after shipment.
5.Well-trained and Professional after-sales service team to support you.
6.Manual will package with machine . It will show you how to use machine step by step.
7.Items are only shipped after payment is received.
Inspection Images:
-
