Product Details:
Payment & Shipping Terms:
|
| Name: | Benchtop X Ray Machine | Applications: | SMT, EMS,BGA, Electronics |
|---|---|---|---|
| Max.Voltage: | 100KV | Max.Power: | 200μA |
| Spot Size: | 5μm | X-ray Leakage: | < 1uSv/h |
| High Light: | x ray detection systems,x ray detector,PCBA Desktop X Ray Machine |
||

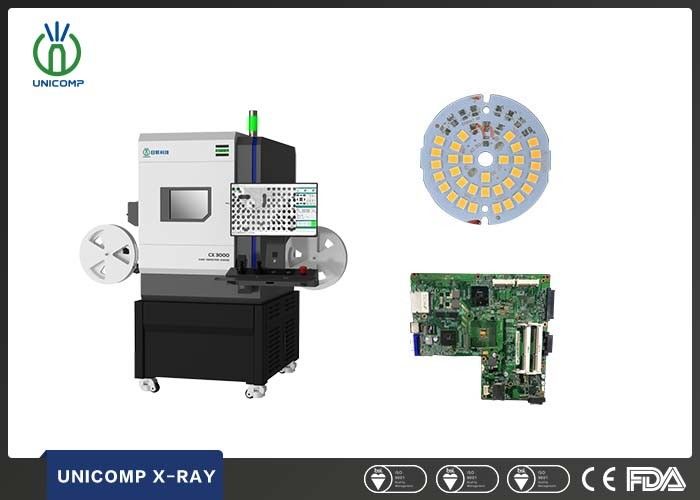

Benchtop Electronics PCBA X ray Machine for Cables , harnesses , plastics
| Item | Definition | Specs |
| System Parameters | Size | 750(L)x570(W)x890(H)mm |
| Weight | 300kg | |
| Power | 220AC/50Hz | |
| Power Consumption | 0.5kW | |
| X-ray Tube | Type | Closed |
| Max.Voltage | 100kV | |
| Max.Power | 200μA | |
| Spot Size | 5μm | |
| Detector | Intensifier | FPD |
| X-ray Coverage | 48mm x 54mm | |
| Resolution | 208Lp/cm | |
| Work Station | Max.Loading Size | 200mm x 200mm |
| Max.Inspection Area | 200mm x 200mm | |
| Oblique Angle Views | 360° rotary fixture (Optional) | |
| X-ray Leakage | <1μSv/h | |
X-ray detection technology for the SMT production testing means brought new changes, it can be said that it is the desire to further improve the level of production technology to improve the quality of production, and will soon find the circuit assembly failure as a breakthrough. It's the best selection for the manufacturer.
Training
Training will include:
Basic Radiation Safety.
X-Ray system control functions.
X-Ray image processing software training.
Basic X-ray signature analysis training.
Hands-on sample analysis using your typical samples.
Training certificates for all attendees.
