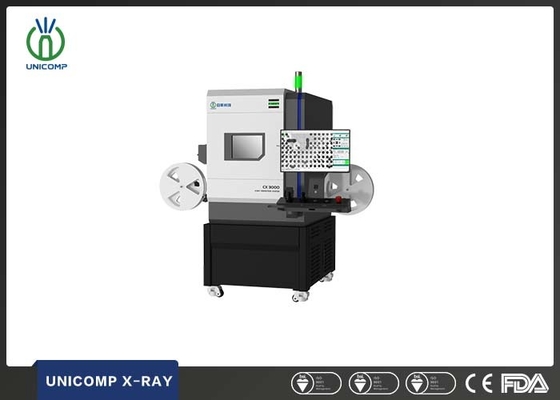

Unicomp Benchtop X Ray Machine / Electronics X Ray Machine For Failure Analysis Laboratories

Unicomp Benchtop X Ray Machine / Electronics X Ray Machine For Failure Analysis Laboratories
Unicomp Benchtop X Ray Machine / Electronics X Ray Machine For Failure Analysis Laboratories

Large Image :  Unicomp Benchtop X Ray Machine / Electronics X Ray Machine For Failure Analysis Laboratories

Product Details:
Place of Origin: China
Brand Name: UNICOMP
Certification: CE, FDA
Model Number: CX3000
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: can negotiate
Packaging Details: Wooden Case, Waterproof, Anti-collision
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 30 sets per month
Detailed Product Description
Name: Unicomp Benchtop X Ray Machine Application: SMT, EMS,BGA, Flip Chip , Semiconductor
Industry: Electronics Industry X-ray Coverage: 48mm X 54mm
Spot Size: Spot Size Power Consumption: 0.5kW
High Light:

desktop x ray machine

,

x ray detector

,

SMT Benchtop X Ray Machine

Benchtop Electronics X-ray Machine for failure analysis laboratories





Item Definition Specs
System Parameters Size 750(L)x570(W)x890(H)mm
Weight 300kg
Power 220AC/50Hz
Power Consumption 0.5kW
X-ray Tube Type Closed
Max.Voltage 100kV
Max.Power 200μA
Spot Size 5μm
Detector Intensifier FPD
X-ray Coverage 48mm x 54mm
Resolution 208Lp/cm
Work Station Max.Loading Size 200mm x 200mm
Max.Inspection Area 200mm x 200mm
Oblique Angle Views 360° rotary fixture (Optional)
X-ray Leakage <1μSv/h




X-ray Inspecting Features:



(1) Coverage of process defects up to 97%. Inspectible defects include: Empty solder, Bridge, Solder shortage, voids, components missing, and so on. In particular, the BGA, CSP and other solder joint devices can also be checked by X-Ray.



(2) Higher test coverage. It can check where the naked eye and the online test can not be checked. Such as PCBA was judged fault, suspected PCB inner trace break, X-ray can be quickly checked.



(3) The test preparation time is greatly reduced.



(4) It can observe other means of detection can not be reliably detected defects, such as: Empty soldering, air holes and poor molding and so on.



(5) Double layers board and multi-layer boards only one check (with layered function).



(6) Can provide relevant measurement information, used to evaluate the production process. Such as solder paste thickness, solder joints under the amount of solder.







Installation



Unicomp will provide installation and calibration service at the customers location Installation includes assistance in registering your new x-ray system with local and state agencies where applicable. One (1) on-site radiation survey at the time of installation with supporting documents.
