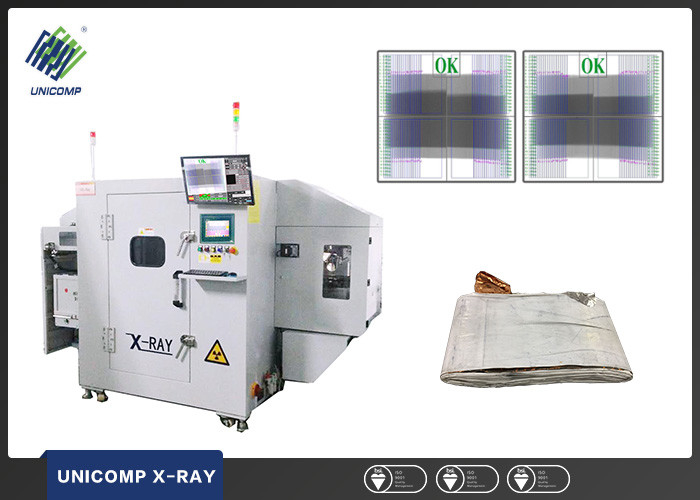

Power Winding Battery X-Ray Online Detection Machine LX-2D24-100
Features:
1, micro-focus tube, the image is more clear;
2, automatic loading and unloading, more labor;
3, the magnification can be adjusted;
4, easy parameter setting, automatic judgment sorting bad product;
5, user-friendly software interface, easy to get started;
6, fully automated operations, reduce manpower, reduce production costs, improve production efficiency and quality consistency;
7, the software automatically determine, improve product consistency and quality assurance;
8, comes with SPC software analysis, easy process control and quality data analysis;
9, designed to take full account of safety factors to ensure the safety of personal protection;
10, the appearance of beautiful, generous, enhance the corporate image.
| System Parameters | Dimension(L×W×H) | 2200mmX1700mmX1750mm |
| Weight | 3.0t | |
| Working Environment | 0～40℃ | |
| Power | 3KW | |
| Accuracy | ±60μm | |
| Operating Mode | In-line | |
| X-ray Tube | Type | Closed |
| Max.Voltage | 100kv | |
| Max.Current | 0.2mA | |
| Focal Spot Size | 5um | |
| Quantity | 2 | |
| Image Detector | Type | Image Intensifier |
| Resolution | 110 Lp/cm | |
| Size | 4” | |
| Quantity | 2 | |
| Applied to | Spiral Power Lithium Battery | |
| Max.Capacity | 24PPM(2-point Pattern)/12ppm(4-point) | |
| Operation Ratio | ≥95% | |
| Applicable Size |
Pole-center distance: 80mm Cell hight: 60-160 |
|
| Items | Alignment Metric | |
| Customer Cases | CATL/Guoxuan/Yiwei/Yinlong(Zhuhai) | |
| Equipment Features |
*Applicable to in-line X-ray detection for Power Lithium Battery of Aluminum Shell; *Auto-shift three inspection modes, automatic docking with production lines, unattended operation; *Precision positioning and rotating mechanism, adjustable detection angle ensures high-definition image; *Unicomp-owned R&D of in-line lithium battery inspection software system |
|
-
