Inline Lithium Battery X Ray Machine Bus Car Green Energy LX-1D12-100
Product Details
x ray imaging system
,x ray cabinet system

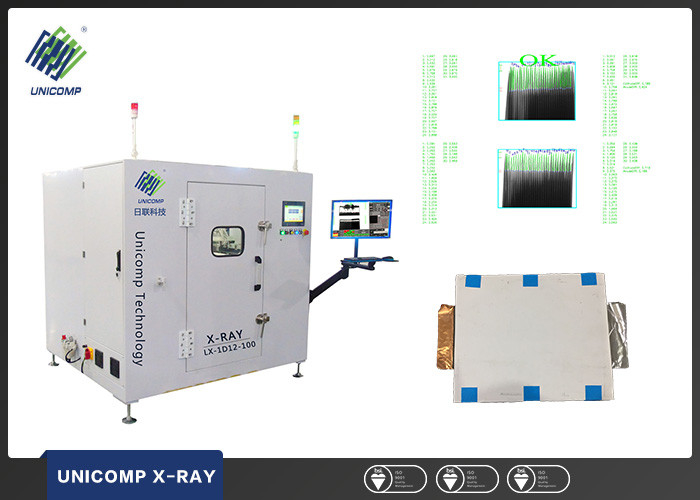

Inline Lithium Battery X-ray Inspection Machine Bus Car Green Energy LX-1D12-100
Features:
1. Automatic sorting
Automatic detection and sorting OK/NG products.
2.Real-time monitoring
Real-time monitoring the state of all actions, signal, hardware. And show on the software interface.
3.Images and data real-time online display.
Test data and images of many parts of the same battery is shown in the same software interface,
convenient observation recognition.
4.Safety protection
The whole equipment safety interlock, triple protection function, any part of the fuselage surface radiation meet safety standards.
Aftersales service:
Ø A professional service team
Ø Country-wide network
Ø 24/7 hotline
Ø Onsite installation, debugging and training services
Ø Scheduled call & visits
Ø Life-long free software upgrading
| System Parameters | Dimension(L×W×H) | 1750mmX1950mmX1850mm |
| Weight | 3.0t | |
| Working Environment | 0～40℃ | |
| Power | 3KW | |
| Accuracy | ±60μm | |
| Operating Mode | In-line | |
| X-ray Tube | Type | Closed |
| Max.Voltage | 100kv | |
| Max.Current | 0.2mA | |
| Focal Spot Size | 5um | |
| Quantity | 1 | |
| Image Detector | Type | Image Intensifier |
| Resolution | 110 Lp/cm | |
| Size | 4” | |
| Quantity | 1 | |
| Applied to | Laminated Power Battery | |
| Max.Capacity | 12PPM | |
| Operation Ratio | ≥95% | |
| Applicable Size | Cell hight: 190-290 Cell width: 140-180 Cell thickness: 4-10mm Carrier size:(customized) |
|
| Items | Alignment Metric | |
| Customer Cases | Do-Fluoride (Jiaozuo)/Penghui(Zhuhai) | |
| Equipment Features |
*Applicable to in-line X-ray detection for Laminated Power Lithium Battery ; *Auto-shift three inspection modes, automatic docking with production lines, unattended operation; *Precision positioning and rotating mechanism, adjustable detection angle ensures high-definition image; *Unicomp-owned R&D of in-line lithium battery inspection software system |
|
-
