Polymer Lithium Battery X-ray Inspection Equipment LX-1R30-100

Polymer Lithium Battery X-ray Inspection Equipment LX-1R30-100
Polymer Lithium Battery X-ray Inspection Equipment LX-1R30-100

Large Image :  Polymer Lithium Battery X-ray Inspection Equipment LX-1R30-100

Product Details:
Place of Origin: China
Brand Name: Unicomp
Certification: ISO9001,ISO14004,OHSAS18001,
Model Number: LX-1R30-100
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Can negotiate
Packaging Details: Wooden Case
Delivery Time: One month
Payment Terms: T/T
Supply Ability: 100Sets/Month
Detailed Product Description
Dimension(L×W×H): 5700mmX2500mmX1800mm Weight: 3.5t
Power: 2.5KW Max.Voltage: 100kv
Resolution: 110 Lp/cm Focal Spot Size: 5um
High Light:

digital x ray machine


x ray cabinet system

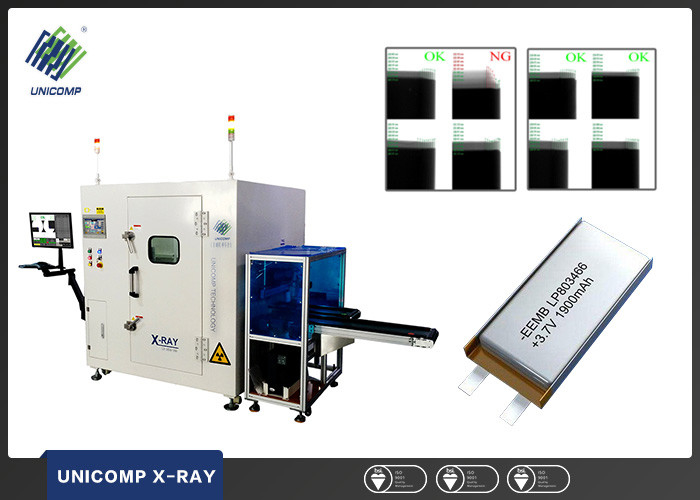

In-line Polymer Lithium Battery X-ray Inspection Equipment LX-1R30-100
Features of X-ray machine:

1.Automatic detection

High automation, automatic loading,detection, sorting qualified/NG products.


2.High efficiency

The machine is suitable for batch inspection with cam indexers controlling eight degrees turntable running in high speed and two sets of imaging system.


3.Images and data real-time online display

Test data and images of many parts of the same battery is shown in the same software interface, convenient observation recognition.


4.Quick changing model

Only replace jig if changing test products.


5.Safety protection
The whole equipment safety interlock, triple protection function, any part of the fuselage surface radiation meet safety standards.

Aftersales service:

  • A professional service team
  • Country-wide network
  • 24/7 hotline
  • Onsite installation, debugging and training services
  • Scheduled call & visits
  • Life-long free software upgrading


Prodcution Capacity

  • Wuxi Factory: 6000M2
  • Shenzhen Factory: 9000M2
  • Chongqing Factory:8500M2
  • Current Capacity: 300 Sets /Month
  • Expansion Capacity: 1000 Sets/Month


Company Introduction:

  • 15 years focused on X-ray technology R & D and equipment mfg.
  • A national Hi-tech enterprise with international vision
  • 3 modern R & D and manufacturing factories, 2 software companies
  • 500 patents & 30 software copyright
  • 500 professional R & D engineers, sales and service staff
  • Company certified by ISO9001, ISO14001 and OHSAS18001 system
  • Products complied with CE, FDA and passed Chinese MPS testing
  • Provincial Engineering Technology Research Center
  • Provincial science and technology award
  • Monthly production capacity up to 500 sets


System Parameters Dimension(L×W×H) 5700mmX2500mmX1800mm
Weight 3.5t
Working Environment 0~40℃
Power 2.5KW
Accuracy ±60μm
Operating Mode In-line
X-ray Tube Type Closed
Max.Voltage 100kv
Max.Current 0.2mA
Focal Spot Size 5um
Quantity 2
Image Detector Type Image Intensifier
Resolution 110 Lp/cm
Size 4”
Quantity 2
Applied to Polymer Lithium Battery
Max.Capacity 30ppm(2-poin Pattern)/15ppm(4-point)
Operation Ratio ≥95%
Applicable Size




Total length:70-210

Items Alignment Metric
Customer Cases Highpower/EBTEB/Bike
Equipment Features

*100KV closed X-ray tube, high -resolution intensifier ;

*High speed, high stability ;

*Modular design with high expansibility, customized automatic battery loading and unloading

*Automatic docking with production lines, unattended operation;

*Unicomp-owned R&D of in-line lithium battery inspection software system
