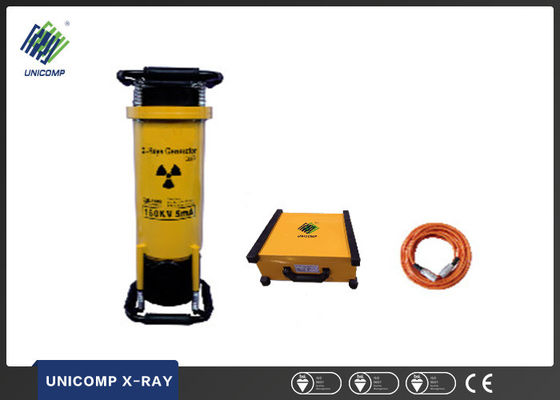

160KV Directional Portable Weld X-ray Equipment Ceramic X-ray Tube XXG-1605
Product Details
x ray generators
,x ray welding machine
,160KV X-ray Equipment
160KV Directional Portable X-ray Detector Ceramic X-ray Tube XXG-1605
Paneramic radiation NDT X Ray Equipment with ripple ceramic x-ray tube plays important parts in carrying on nondestructive examination for nonmetallic, light metal, casting, various alloys and pressure vessels etc, mainly detecting weld defects ,such as crack, blowhole, entrapped slag, incomplete fusion ,blowhole,bubble etc ,also using for shipbuilding ,airplane and national defense etc industry field
Highlight Features:
Sensitivity:＞1.5％
Photographic density:D＞1.5
Maximum penetrating power :20mm(A3 Steel)
Small volume
Forced air cooling
Light-weight
Portable and convenient
Work and rest with 1:1 time ratio
Reasonably structured
Delayed exposure to keep safe
Applications:
Suitable for national defense,shipbuilding,petroleum,chemical,machinery,aerospace,and construction industries inspect for material such as hull,pipeline,high pressure vessel,boiler,aircraft,vehicles and bridges etc,spare parts welding quality,internal defects and various light metal,rubber,ceramics etc.processing quality.
Packing List :
X-Ray Generator: 1SET (Including X-ray tube, Generator, Cooling System, Temperature Control)
Controller:1PCS
Ground Lead wire :1PCS /5M
Connection Cable YR 3*2.5+6*1: 1PCS /25M
Power Cable YR3*2.5: 1PCS /10M
Fuse 20A 6*30: 5 units
Manual: 1PCS
Certification: 1PCS
Product Test Report: 1PCS
Packing List File: 1PCS
Directional Portable X-ray Detector (Ceramic X-ray tube)
| Model |
|
Power |
Focus Size |
Radiation Angle |
Max Penetrating Power |
Size |
Weight |
| XXG-1605 | 50-160 | 1.8 | 1.5×1.5 | 40°＋5° | 20 | 220*220*560 | 20 |
| XXG-2005 | 120-200 | 2.0 | 2.0×2.0 | 40°＋5° | 30 | 250*250*620 | 26 |
| XXG-2505 | 150-250 | 2.5 | 2.0×2.0 | 40°＋5° | 40 | 260*260*740 | 28 |
| XXG-3005 | 170-300 | 3.0 | 2.5×2.5 | 40°＋5° | 50 | 320*320*820 | 34 |
| XXG-3505 | 200-350 | 3.5 | 2.5×2.5 | 40°＋5° | 60 | 320*320*820 | 35 |
-
