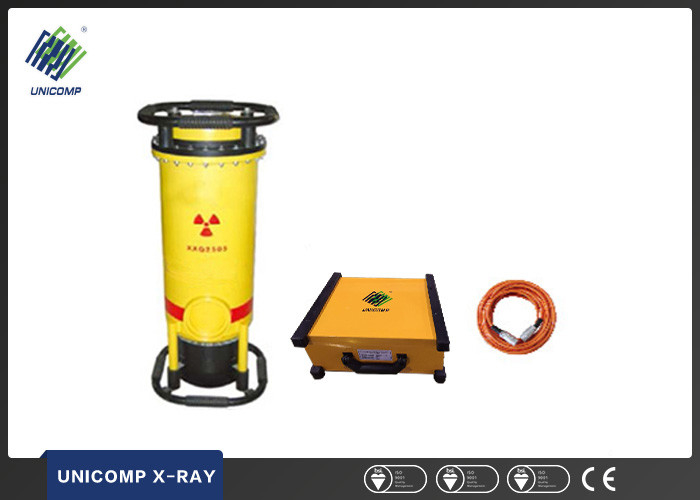

250KV Directional Portable Flaw Detector Glass X-ray Tube XXG-2505
Product Details
x ray generators
,x ray welding machine
250KV Directional Portable X-ray Flaw Detector Glass X-ray Tube XXG-2505
Highlight Features:
Sensitivity:＞1.5％
Photographic density:D＞1.5
Maximum penetrating power :40mm(A3 Steel)
Small volume
Forced air cooling
Light-weight
Portable and convenient
Work and rest with 1:1 time ratio
Reasonably structured
Delayed exposure to keep safe
Application:
Spaceflight industry
Shipbuilding industry
Metallurgy industry
Chemical industry Power supply
Automobiles
Pressure container
Heavy machine manufacture industry
Bridge building industry
Parts processing and Welding quality and internal defects
All kinds of light metal, rubber, ceramics processing quality
Packing List :
X-Ray Generator: 1SET (Including X-ray tube, Generator, Cooling System, Temperature Control)
Controller:1PCS
Ground Lead wire :1PCS /5M
Connection Cable YR 3*2.5+6*1: 1PCS /25M
Power Cable YR3*2.5: 1PCS /10M
Fuse 20A 6*30: 5 units
Manual: 1PCS
Certification: 1PCS
Product Test Report: 1PCS
Packing List File: 1PCS
| Model |
Output Voltage |
Power |
Focal Size |
Radiation Angle |
Max. Penetration (A3 Fe) |
Dimension(mm) | Weight | ||
| Generator | controller | Generator | controller | ||||||
| XXQ-2505 | 130-250kV | 2.5 KVA | 2.0*2.0mm | 40+5 | 40mm | 320*320*720 | 370*300*150 | 34kg | 9kg |
-
