Product Details:
Payment & Shipping Terms:
|
| Tunnel Size（mm）: | 600x400 | Max.Loading Weight: | 10kg |
|---|---|---|---|
| Monitor: | 19'' | Dimension（WxDxH,mm): | 1600x790x1800 |
| Weight: | 500kg | Safety: | <1μSv/h (5cm Away From The Housing) |
| Highlight: | food through x ray machine,food x ray inspection equipment |
||

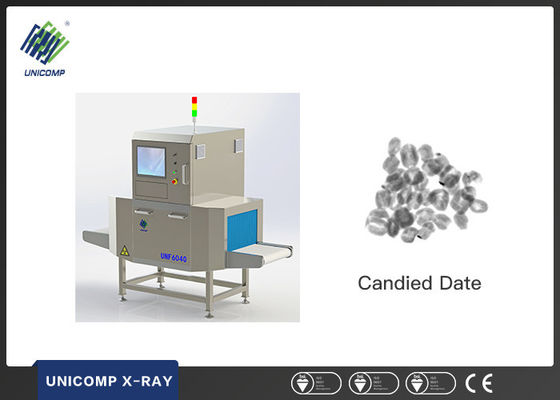

Food X-Ray Detection and Inspection Systems for Foreign Matters
Features:
Excellent operability:
Automatically save product images, convenient for later analysis.
Adapt to multiple product inspection:
Pallets, bags, boxes, bottles, cans, loose products etc.
High specification hardware configuration:
The components of the equipment are imported brands to ensure the performance and service life of the whole machine.
Easy to disassemble and clean:
Easier integration of existing production lines and conveyor belts, easier removal, cleaning and maintenance.
Good environmental adaptability:
Product channel protection grade reaches IP66, the whole structure is completely sealed, waterproof and dustproof.
The following features could be of some value to help you choose Unicomp as your future working partner.
| Model | UNF6040 |
| Max Voltage | 40-120kV |
| Max Current | 0.2-7.5mA |
| Inspection Speed (m/min) | 10-50 |
| Inspection Accuracy(mm) | Stainless steel ball ø0.5,Stainless steel wire 0.2x1.5, Glass2.0,Plastic 1.5 |
| Image system | Linear detector array |
| Belt | Food grade belt, length can be customized |
| Tunnel Size(mm) | 600x400 |
| Max.Loading Weight | 10kg |
| Monitor | 19'' |
| Dimension(WxDxH,mm) | 1600x790x1800 |
| Weight | 500kg |
| Safety | <1μSv/h (5cm away from the housing) |
| Operation | 1-2person (Can be fully automated with automatic line docking) |
| Equipment material | 304Stainless steel |
| Software | Unicomp Software |
| Applications | Bulk, metal (or non-metal) packaging and canning |
| Radiation Safety Statement :All the equipments produced by Unicomp Technology meet the relevant requirements of the national standard GB18871-2002, which is better than the industry average. | |
| Work environment : Temperature -5-40°C , Humidity 10-90% (No condensation) | |
Packaging & Shipping
Strong Plywood Case special designed for export packing to avoid any broken during the shipping.
Shipping: By sea or by air.
