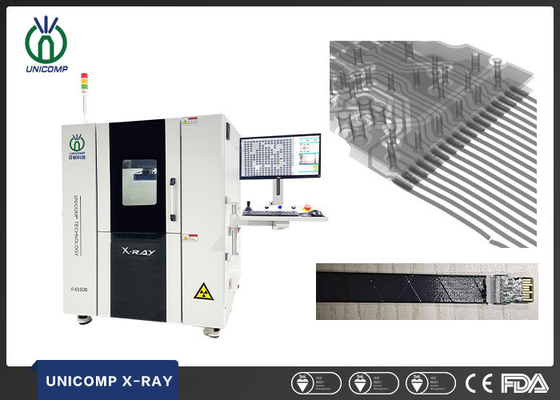

5μm Microfocus X-ray with FPD 55° tilting view to inspect PCBA BGA QFN LED soldering void

5μm Microfocus X-ray with FPD 55° tilting view to inspect PCBA BGA QFN LED soldering void
5μm Microfocus X-ray with FPD 55° tilting view to inspect PCBA BGA QFN LED soldering void

Large Image :  5μm Microfocus X-ray with FPD 55° tilting view to inspect PCBA BGA QFN LED soldering void

Product Details:
Place of Origin: China
Brand Name: Unicomp
Certification: CE, FDA
Model Number: AX8500
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: can negotiate
Packaging Details: Wooden Case, Waterproof, Anti-collision
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 300 sets per month
Detailed Product Description
Name: X-ray Inspection Machine Application: SMT, EMS,BGA, Electronics, CSP , LED , Flip Chip , Semiconductor
Tube Voltage: 100KV Industry: Electronics Industry
Size: 1370(W)×1300(D)×1700(H)mm X-ray Leakage: < 1uSv/h
Weight: 1600kg
High Light:

x ray fluorescence instrument

,

x ray fluorescence equipment

5μm Microfocus X-ray with FPD 55° tilting view to inspect PCBA BGA QFN LED soldering void



5μm Microfocus X-ray with FPD 55° tilting view to inspect PCBA BGA QFN LED soldering void 0



Technical Parameters and Specifications



System Summary
Footprint 1370(W)×1300(D)×1700(H)mm
Machine Weight 1600 kg
Power Supply AC 110~220V, 50/60Hz
Plywood Packing Size 1750(W)×1500(D)×2000(H)mm
Packing Weight 1800 kg
Power Consumption 2.0 kW
X-Ray Tube
Tube Type Sealed
Max. Power 25W
Voltage 0~110kV (Adjustable)
Focus Spot Size 5μm
Imaging System
Detector Flat Panel Detector (FPD)
Pixel Size 85μm
Effective Detection Area 130*130mm
Frame Rates 20fps
Pixel Matrix 1536*1536
System Magnification 1600X
Software
Auto-measuring BGA Soldering Voids Auto-measuring and Support Data/Graphic Output
Multiple Measuring Tools Support Measuring Distance, Angle, Diameter, Polygon, PTH filling rate, etc.
CNC Mode CNC Programmable Inspection, Easy Operation and User Friendly
Real-time Display Real-time Displaying the Working Data of Voltage, Current, Angle, Date, etc
Navigation Convenient Target Point Positioning System
Motion Control System
Movement Control Joystick, Keypad & Mouse
Max. Loading Area/Weight Ф570mm / 10kg
Max. Inspection Area 450*450mm
Oblique Views Max. 55° Filting (FPD) / 360° Rotation (Table)
Manipulator 6-axis with X1 / X2 / Y / Z1 / T (55°) /R (360°)
Industrial PC
Monitor 22’’ FHD LCD Display
System OS Windows 10 64bit
Hard disk 1TB
RAM 8GB
CPU model Intel i7 Processor
Other Features
Energy Saving X-Ray Auto-off when it's out of work over than 5 minutes
Safety Operation Electromagnetic Interlock and warning Light
Authority Management Password Management
X-Ray Safety <1μSv/h (Meets All International Standards)
* Specifications are subject to change without notice, All trademarks are the property of the system maker.





Inspection Images:
Unicomp AX8500 X Ray Inspection Machine For SMT EMS BGA LED CSP QFN Soldering 0



Functions and Features



Unicomp AX8500 X Ray Inspection Machine For SMT EMS BGA LED CSP QFN Soldering 1


Applications:



Unicomp AX8500 X Ray Inspection Machine For SMT EMS BGA LED CSP QFN Soldering 2

Widely applied for BGA , CSP , Flip Chip, LED , Fuse,Diode, PCB, Semiconductor, Battery Industry, Small
Metal Casting, Electronic Connector Module, Cables,Aerospace Components, Photovoltaic Industry, etc.
