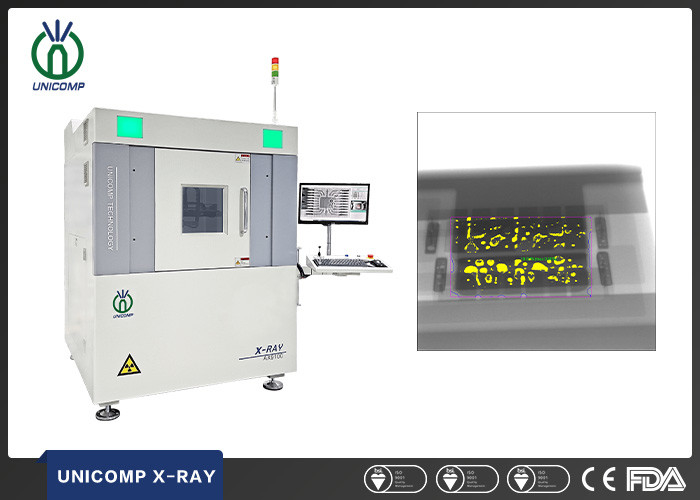

Unicomp 130kV microfocus X-ray AX9100 for Led PCBA soldering Void measurement

Unicomp 130kV microfocus X-ray  AX9100 for Led PCBA soldering Void measurement
Unicomp 130kV microfocus X-ray  AX9100 for Led PCBA soldering Void measurement

Large Image :  Unicomp 130kV microfocus X-ray AX9100 for Led PCBA soldering Void measurement

Product Details:
Place of Origin: China
Brand Name: Unicomp
Certification: CE
Model Number: AX9100
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: USD
Packaging Details: Unicomp package
Delivery Time: 30 work days
Payment Terms: T/T, L/C
Supply Ability: 300 pcs per month
Detailed Product Description
Name: X-ray Inspection Machine Application: SMT, EMS, BGA, Electronics, CSP , LED , Flip Chip , Semiconductor
Tube Voltage: 130KV Industry: Electronics Industry
Size: 1350(L)x1250(W)x1700(H)mm X-ray Leakage: < 1uSv/h
High Light:

x ray fluorescence instrument

,

micro xrf analyzers

Unicomp 130kV microfocus X-ray AX9100 for Led PCBA soldering Void measurement



Unicomp 130kV microfocus X-ray  AX9100 for Led PCBA soldering Void measurement 0



Features:


● 90-130KV 7μm X-Ray tube.
● High speed & Millions pixels high resolution FPD.
● 1000X magnification, high-definition real-time image.

● One-button operation with 2.5D image display.
● Off-line programming function, navigation mode detection.
● 7 axis linkage, 70 degree tilt detection.



Applications:


● SMT, BGA, CSP, Flip Chip, LED Detection.
● Semiconductor, Packaging components, Battery Industry.
● Electronic components, Auto parts, Photovoltaic Industry.
● Aluminum Die-casting, Moulding Plastic.
● Ceramics, Other Special Industries.





Item Definition Specs
System Parameters Size 1350(L)x1250(W)x1700(H)mm
Weight 1900kg
Power 220AC/50Hz
Power Consumption 1.6kW
X-ray Tube Type Closed
Max.Voltage 130kV
Max.Power 40W
Spot Size 7μm
X-ray System Intensifier FPD
Monitor 22 ‘’LCD
System Magnification 1600 X
Detection Region Max.Loading Size Φ570mm
Max.Inspection Area 450mm x 450mm
X-ray Leakage <1μSv/h





Test Images:



Using Micro Focus X-ray AX9100 with High Resolution Image Detector to detect Micro or Mini LED Sodering Void and crac 1
