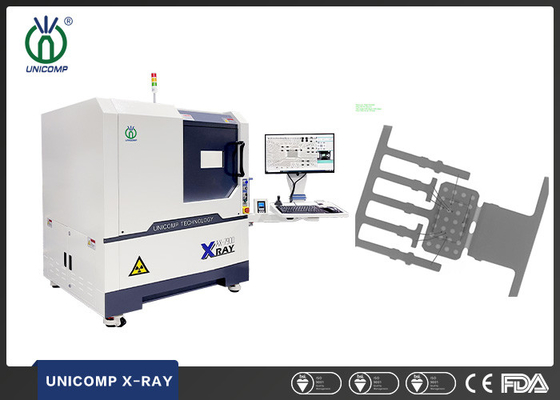

Unicomp offline AX7900 X-ray machine with auto-mapping and BGA QFN LED soldering Void auto measurement

Unicomp offline AX7900 X-ray machine with auto-mapping and BGA QFN LED soldering Void auto measurement
Unicomp offline AX7900 X-ray machine with auto-mapping and BGA QFN LED soldering Void auto measurement

Large Image :  Unicomp offline AX7900 X-ray machine with auto-mapping and BGA QFN LED soldering Void auto measurement

Product Details:
Place of Origin: China
Brand Name: Unicomp Technology
Certification: CE, FDA
Model Number: AX7900
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: can negotiate
Packaging Details: Wooden Case, Waterproof, Anti-collision
Delivery Time: 15 days after order confirmation
Supply Ability: 300 sets per month
Detailed Product Description
Name: Unicomp X-ray Inspection Machine Application: SMT, EMS,BGA, Electronics, CSP , LED , Flip Chip , Semiconductor
Voltage: 0~90kV (Adjustable) Detector: Flat Panel Detector (FPD)
Pixel Size: 85μm Focus Spot Size: 5μm
X-Ray Safety: <1μSv/h (Meets All International Standards)
High Light:

vehicle x ray scanner

,

vehicle x ray machine

Unicomp offline AX7900 X-ray machine with auto-mapping and BGA QFN LED soldering Void auto measurement

Specifications of Unicomp offline AX7900 X-ray machine:

System Summary
Footprint 1200(W)×1200(D)×1500(H)mm
Machine Weight 1130 kg
Power Supply AC 110/220V, 50/60Hz
Plywood Packing Size 1350(W)×1350(D)×1800(H)mm
Packing Weight 1330 kg
Power Consumption 1.3kW
X-Ray Tube
Tube Type Sealed
Max. Power 8W
Voltage 0~90kV (Adjustable)
Focus Spot Size 5μm
Imaging System
Detector Flat Panel Detector (FPD)
Pixel Size 85μm
Effective Detection Area 65*65mm
Frame Rates 40fps
Pixel Matrix 768*768
System Magnification 600X
Software
Auto-measuring BGA Soldering Voids Auto-measuring and Support Data/Graphic Output
Multiple Measuring Tools Support Measuring Distance, Angle, Diameter, Polygon, PTH filling rate, etc.
CNC Mode CNC Programmable Inspection, Easy Operation and User Friendly
Real-time Display Real-time Displaying the Working Data of Voltage, Current, Angle, Date, etc
Navigation Convenient Target Point Positioning System
Motion Control System
Movement Control Joystick, Keypad & Mouse
Max. Loading Area/Weight 520*420mm / 10kg
Max. Inspection Area 460*400mm
Tilting Angle ±30°
Manipulator 5-axis with X / Y / Z1 / Z2 / T
Industrial PC
Monitor 24’’ FHD LCD Display
System OS Windows 10 64bit
Hard disk 1TB
RAM 8GB
CPU model Intel i7 Processor
Other Features
Energy Saving X-Ray Auto-off when it's out of work over than 5 minutes
X-Ray Safety <1μSv/h (Meets All International Standards)
Authority Management Fingerprint Access Magnagement System, and Support Password Accessing.
Safety Operation Electromagnetic Interlock, Warning Light and Real-time Radioation Leakage Monitor
* Specifications are subject to change without notice, All trademarks are the property of the system maker.



FEATURES of Unicomp offline AX7900 X-ray machine:



90KV 5μm X-ray tube, FPD Detector.

Multi-function workstation, X-Y multi-axis movement. ±60° "Arc" motion(Option).

Motion controls include: X/Y table motion plus Z axis tube and detector movement, ±60° tilt motion (option).

Multi-function DXI image processing system.

X/Y programming function for multiple image inspection routines

Max. loading area 420mm x 420mm, max. detection area 380 x 380mm, with ~300X System Magnification.

BGA void/area auto-measurement plus report generation.



Unicomp offline AX7900 X-ray machine with auto-mapping and BGA QFN LED soldering Void auto measurement 0




APPLICATION of Unicomp offline AX7900 X-ray machine:


LED, SMT, BGA, CSP, Flip Chip Inspection.
Semiconductor, Packaging components, Battery Industry.
Electronic components, Auto parts, Photovoltaic Industry.
Aluminum Die Casting, Moulding Plastic.
Ceramics, Other Special Industries



Description of Unicomp offline AX7900 X-ray machine:



90KV 5μm X-ray tube, FPD Detector. Multi-function workstation, XY multi-axis movement standard with ±60° tilt motion (option). Z axis movement for x-ray tube & FPD to increase/decrease magnification/FOV. Convenient target point positioning system. Multi-function DXI image processing system with XY programming for multiple image inspection routines. Max. loading area 420mm x 420mm , max. detection area 380 x 380mm, with ~300X System Magnification.
