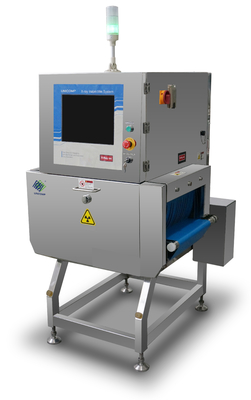

15" Touch Screen Food And Beverage X Ray 10-50 M / Min Inspection Speed AC 220V
Basic Properties
Place of Origin:
China
Brand Name:
Unicomp
Certification:
CE, FDA
Model Number:
UNF4080
Trading Properties
Minimum Order Quantity:
1 set
Price:
On request
Payment Terms:
T/T, Western Union, L/C
Supply Ability:
500 sets per month
Product Summary
System specifications: Model UNX-4080 Best Inspection Ability 0.3*0.3*0.3mm(SUS304 ball) 0.2*2mm( SUS wire) 1.0 mm (Glass Ball) 1.0 mm(Ceramic) X-ray tube MAX.210W/80kV Max Detecting Height 160mm Max Detecting Width 400mm Conveyor Parameter Speed 10-60m/min Width 420mm Max Height 165mm Max Load 15kg ...
Product Details
Highlight:
food x ray inspection equipment
,x ray food inspection systems
Max. Voltage:
80kV
Inspection Speed:
10-50 M / Min
Product Description
System specifications:
| Model | UNX-4080 | |
| Best Inspection Ability |
0.3*0.3*0.3mm(SUS304 ball) 0.2*2mm( SUS wire) 1.0 mm (Glass Ball) 1.0 mm(Ceramic) |
|
| X-ray tube | MAX.210W/80kV | |
| Max Detecting Height | 160mm | |
| Max Detecting Width | 400mm | |
| Conveyor Parameter | Speed | 10-60m/min |
| Width | 420mm | |
| Max Height | 165mm | |
| Max Load | 15kg | |
| Screen | Full-color TFT 15" Touch Screen | |
| O/S | Windows XP Professional | |
| Connectivity | LAN port, USB port | |
| Product Management | Complete product log | |
| Parameter Adjustment | Auto learning/Manual setting | |
| Image Management | Auto image save/print/analyses | |
| Power Supply | 220V, AC, 50/60Hz | |
| Body Material | SUS304 | |
| Purification | Easy to wash | |
| Cooling method | Air conditioned cooling | |
| Operation temperature | 0-40°C | |
| Operation humidity | 30-90% | |
| X-ray emissions | < 1microsievert per hour | |
| X-ray protection | Protective curtain | |
Inspection Image:
Application:
Food processing production line; packed food; chopped vegetable/fruit.
