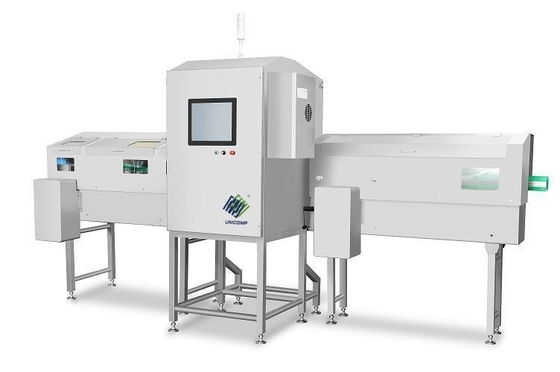

Unicomp Fully Automatic Food Through X Ray Machine For Beverage Production Line
Basic Properties
Place of Origin:
China
Brand Name:
Unicomp
Certification:
CE, FDA
Model Number:
UNF-1630
Trading Properties
Minimum Order Quantity:
1 set
Price:
On request
Payment Terms:
T/T, Western Union, L/C
Supply Ability:
500 sets per month
Product Summary
System Specifications: Model UNF - 1630 Best Inspection Ability 0.5mm(SUS304 ball) 0.3*2mm(SUS304 wire) 1.5 mm (Glass Ball) 1.5 mm(Ceramic Ball) X-ray tube MAX. 480W/120kV, 8mA Detector Pixel size 0.4mm Max Detecting Height 300mm Max Detecting Width 160mm Conveyor Parameter Speed 10-60m/min ...
Product Details
Highlight:
food x ray inspection equipment
,x ray food inspection systems
Product Description
System Specifications:
| Model | UNF - 1630 | |
| Best Inspection Ability |
0.5mm(SUS304 ball) 0.3*2mm(SUS304 wire) 1.5 mm (Glass Ball) 1.5 mm(Ceramic Ball) |
|
| X-ray tube | MAX. 480W/120kV, 8mA | |
| Detector | Pixel size 0.4mm | |
| Max Detecting Height | 300mm | |
| Max Detecting Width | 160mm | |
| Conveyor Parameter | Speed | 10-60m/min (Adjustable) |
| Width | 150mm | |
| Screen | Full-color TFT 15" Touch Screen | |
| O/S | Windows 7 Professional | |
| Connectivity | LAN port, USB port | |
| Product Management | Complete product log | |
| Parameter Adjustment | Auto learning/Manual setting | |
| Image Management | Auto image save/print/analyses | |
| Power Supply | 220±10%V, AC, single phase, 50/60Hz | |
| Body Material | SUS304 | |
| Cooling method | Air conditioned cooling | |
| Operation temperature | 0-40℃ | |
| Operation humidity | 20-90% | |
| X-ray Safety | < 1 micro sievert per hour | |
| X-ray protection | Closed stainless steel 304 cover (No protective screens) | |
| Reject type | High speed push exclusion (Max. Action 10 times per second) | |
| Reject air pressure | Max. 0.6MPa | |
Inspection Image:
