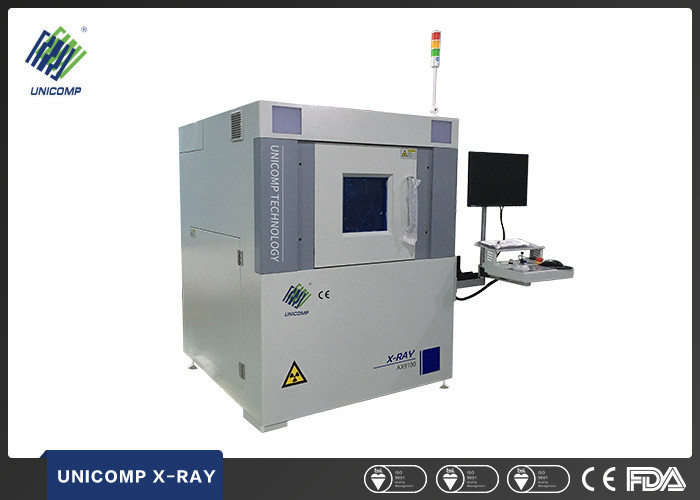

Micro Focus Electronics X Ray System SMT Electronics Internal Defects Control
Basic Properties
Place of Origin:
China
Brand Name:
Unicomp
Certification:
CE, FCC
Model Number:
AX9100
Trading Properties
Minimum Order Quantity:
1
Payment Terms:
T/T
Product Summary
Application Semiconductor, Packaging components, Battery Industry, Electronic components, Automotive parts, Photo-voltaic, SMT, BGA, CSP, Flip Chip, LED Detection Ceramics, other special industries. Aluminium Die-casting, Moulding Plastic. Features Max. loading area φ570mm, max. inspection area ...
Product Details
Highlight:
electronics x ray system
,x ray equipment
Function:
PCBA，BGA Inspection
Equipment:
Quality Check
Product Description
- Application
- Semiconductor, Packaging components, Battery Industry,
- Electronic components, Automotive parts, Photo-voltaic,
- SMT, BGA, CSP, Flip Chip, LED Detection
- Ceramics, other special industries.
- Aluminium Die-casting, Moulding Plastic.
- Features
- Max. loading area φ570mm, max. inspection area 450mm*450mm, with 1600X Magnification
- Tilt detection with 55° and rotation 360°operation together with 6 axis movement
- X-ray tube & detector automatic lifting and descending, with convenient target point positioning system
- Multi-function DXI image processing system, CNC programmable detection
- 130kV (Option 110KV) 7µm closed X-ray tube, high speed & Millions pixels high resolution FPD
- X-ray Images
- Technical Specifications
| Item | Description | Specifications |
| X-Ray Tube | Max. Voltages, Type | 130kV (Option 110KV), Closed |
| Power Consumption | 40W(25W) | |
| Focal Spot Size | 7 μm | |
| Magnification | 1600X | |
| Detector | Detector Type | FPD |
| Resolution | 101 LP/cm | |
| Effective Area | 116.4mm ×145.7mm | |
| System Computer | Operating System | Industrial PC, Win 7, i7 Processor |
| Monitor | 22” LCD | |
| Software | User Interface | Unicomp Multi-function DXI image processing system |
| Working Platform | Max. Loading Area | φ570mm |
| Max. Inspection Area | 450mm×450mm | |
| Max. Loading Weight | 10kg | |
| Movement Control | Joysticks, Mouse and Keypads | |
| Motion Range (Up and Down) | 200mm | |
| Table Tilting Angle | 55° Tilting and 360° Rotation | |
| Navigation | Camera | HD Camera, Laser point |
| Axis | Manipulator | 6-axis with X1/ X2 / Y / Z / T(55°) / R(360°) |
| Equipment Features | Power Supply | AC 110~220V (±10%) 50Hz, 2.0kW |
| Outline Dimensions | 1450(W)×1500(D)×1850(H)mm | |
| System Weight | 1900 kg | |
| Optional Accessories | None | |
| Warranty |
One year warranty , free replacement the parts due to original manufacturer's defect, but expect of man-made damages and force majeure |
|
