Product Details:
Payment & Shipping Terms:
|
| Dimension: | 1650*960*1700mm | Application: | Electronics, LED , Flip Chip , Semiconductor |
|---|---|---|---|
| Tunnel Size: | 440mm | Max.Current: | 3.5mA |
| Maximum Inspection Speed: | 0.lm/s | Detected Project Size: | 30-450 Thickness Les S Than 50mm |
| High Light: | electronic component counter,electronic parts counter |
||

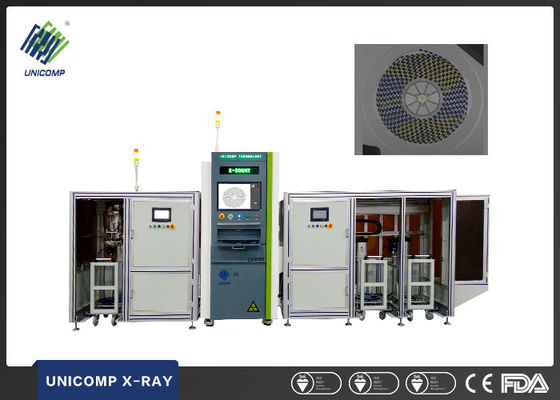

Electronic Components Counting System Production Line X-ray Counter LX6000
Manual component counting requires hours and includes the possibility of miscounts resulting in machine down-time, inaccurate inventory management, and ultimately reduced profit margins. Seamless and flexible automation means more up-time on the assembly line and increased productivity. Component counting using Unicomp X-Ray technology can take only seconds for an entire reel. Increase productivity with the most accurate, fast, and easy to use component counter available.
An inaccurate count is dangerous because other operations rely on the count being correct. The LX6000 count accuracy is >99% for all supported component types. Whether the components are tightly wound or loose on the reel, you can always be sure the count will be correct. In many cases, the accuracy can be 99.99% or even 100%.
Features:
• One-button operation, automatic counting
• Specially for incoming inspection and inventor y management
• Compatible of<!>30-<l>450mm tape reel
• Auto matic link with ERP & Shop Floor System
| Item | Definition | Specs |
| System Parameters | Dimension | 1650*960*1700mm |
| Weight | 750kg | |
| Power | 220AC/50Hz | |
| Power Consumption | 0.8kW | |
| Tunnel Size | 440mm | |
| X-ray Tube | Type | Closed |
| Max.Voltage | 100kV | |
| Max.Current | 3.5mA | |
| Spot Size | 0.4mm | |
| Detector | Type | Line Array Scan |
| Minimum Imaging Unit Size | 0.1mm | |
| Detection Parameters | Maximum Inspection Speed | 0.lm/s |
| Detected Project Size | <t>30-<t>450 thickness les s Than 50mm | |
| Type of Smallest Compa tible Component | 0201 | |
| Accuracy | >=99.8% | |
| X-ray Leakage | <1μSv/h | |
