Product Details:
Payment & Shipping Terms:
|
| X-Ray Voltage: | 130kV | Detector: | FPD |
|---|---|---|---|
| Focal Spot: | 3μm | Control Mode: | CNC |
| Highlight: | Online ADR X Ray Inspection Equipment,LED Strip X Ray Inspection Equipment,130kv Electronic Inspection Equipment |
||
| Item | Definition | Specs |
| System Parameters | Size | 1385(L)x1400(W)x1620(H)mm |
| Weight | 2000kg | |
| Power | 220AC/50Hz | |
| Power Consumption | 3.5kW | |
| X-ray Tube | Type | Closed |
| Max.Voltage | 130kV | |
| Max.Power | 40W | |
| Spot Size | 3μm | |
| X-ray System | Intensifier | FPD |
| Monitor | 22 ‘’LCD | |
| System Magnification | 200 X | |
| Detection Region | Orbit Adjusting Range | 80-350mm |
| X-ray Leakage | <1μSv/h | |
| Control Mode | CNC Motion Mode | |

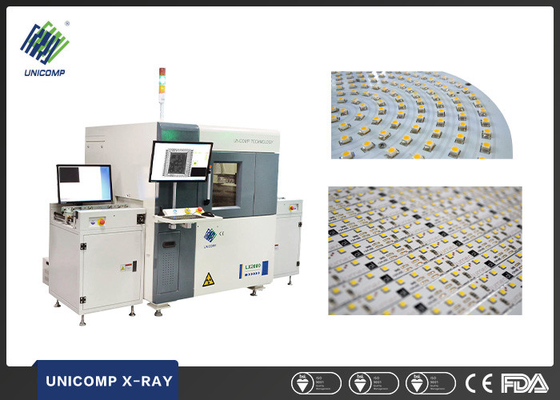

The LX-2000 is a versatile OnLine X-ray Machine designed for automated and semi-automated analysis. In addition to the OnLine capability, the LX-2000 can also be used in a Manual mode as a process monitoring/engineering workstation.
High resolution x-ray images are generated using a closed microfocus 130kV tube with leading edge FPD (Flat Panel Display) detectors. This imaging chain combination is excellent for multiple applications including; PCBA, Semiconductor, Encapsulated Components, and Solar Cell just to name a few.
BGA , CSP , Flip Chip, LED , Fuse, Diode, PCB
Semiconductor , Battery Industry , Small Metal Casting, Electronic Connector Module
X-Ray Safety: All X-ray machines manufactured by Unicomp Technology meet the FDA-CDRH Regulation CFR 21 1020.40 Subchapter J for cabinet x-ray systems. The FDA - CDRH standard for cabinet x-ray systems states that radiation emission will not exceed. 5millirem a /hr.2"from any external surface. Our machines (X-Ray Leakage <1μSv/h ) are typically 5-10 times less emission than the international standards,
