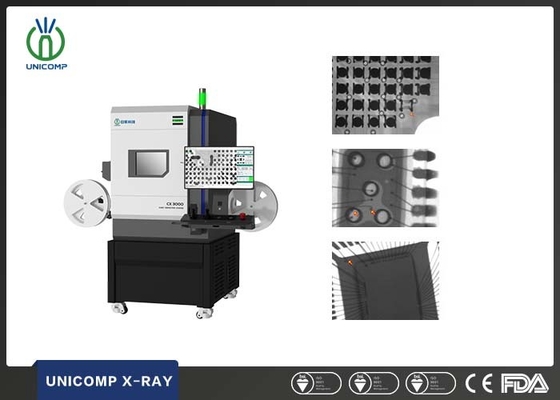

Desk-top Multi-function microfocus CX3000 X-ray Inspection System for electronic components fake inspection

Desk-top Multi-function microfocus CX3000 X-ray Inspection System for electronic components fake inspection
Desk-top Multi-function microfocus CX3000 X-ray Inspection System for electronic components fake inspection

Large Image :  Desk-top Multi-function microfocus CX3000 X-ray Inspection System for electronic components fake inspection

Product Details:
Place of Origin: China Guangdong
Brand Name: Unicomp
Certification: CE, FDA
Model Number: CX3000
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: can negotiate
Packaging Details: Wooden Case, Waterproof, Anti-collision
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 30 sets per month
Detailed Product Description
Name: Electronics X Ray Machine Application: SMT, EMS,BGA, Electronics, CSP , LED , Flip Chip , Semiconductor
X-ray Coverage: 48mm X 54mm X-ray Leakage: < 1uSv/h
Weight: 300kg Power Consumption: 0.5kW
High Light:

pcb depaneling equipment

,

pcb depaneling tool

Desk-top Multi-function microfocus CX3000 X-ray Inspection System for electronic components fake inspection





Specification Of X-Ray machine

Item Definition Specs
System Parameters Size 750(L)x570(W)x890(H)mm
Weight 300kg
Power 220AC/50Hz
Power Consumption 0.5kW
X-ray Tube Type Closed
Max.Voltage 100kV
Max.Power 200μA
Spot Size 5μm
Detector Intensifier FPD
X-ray Coverage 48mm x 54mm
Resolution 208Lp/cm
Work Station Max.Loading Size 200mm x 200mm
Max.Inspection Area 200mm x 200mm
Oblique Angle Views 360° rotary fixture (Optional)
X-ray Leakage <1μSv/h





OUR SERVICE



1. Your inquiry will be replied in 12 hours.

2. Original Manufacture to customers, with competitive price.

3. We provide one year warranty, free training and whole life technology support.

4. We can arrange the shipment by air, DHL,Fedex, UPS, and by Sea,etc for you,and will give you the tracking NO. after shipment.

5. Well-trained and Professional after-sales service team to support you.

6. Manual will package with machine . It will show you how to use machine step by step.

7. Items are only shipped after payment is received.





FEATURES of X-ray machine



1. 5μm 100kV X-ray tube;

2. Dynamic FPD with high-resolution of 1000×1124;

3. Equipped with 360° rotary fixture to eliminate PoP shadow;

4. The detection area easily positioned by external rocker;

5. Inspection & Analysis of soldering joint and materials inner structure;

6. High safety with seamless lead welding, interlock and emergency button.
