FPD 130kV X Ray Inspection Machine For Cartridge Heater
Basic Properties
Place of Origin:
China
Brand Name:
Unicomp
Certification:
CE, FCC
Model Number:
AX9100
Trading Properties
Minimum Order Quantity:
1
Price:
can negotiate
Payment Terms:
T/T
Supply Ability:
300 sets per month
Product Summary
Application Widely applied for BGA , CSP , Flip Chip, LED , Fuse, Diode, PCB, Semiconductor, Battery Industry, Small Metal Casting, Electronic Connector Module, Cables, Aerospace Components, Photovoltaic Industry, etc. Features Max. loading area 645*670mm, max. inspection area 565mm*510mm, with 44...
Product Details
Highlight:
FPD X Ray Inspection Machine
,130kV X Ray Inspection Machine
,Cartridge Heater X Ray Scanner
Function:
PCBA，BGA Inspection
Equipment:
Quality Check
Properties:
High-Energy-Ray Medical Equipments
Instrument Classification:
Class II
Warranty:
12 Months
Name:
Portable X Ray Machine
Product Description
- Application
- Widely applied for BGA , CSP , Flip Chip, LED , Fuse, Diode, PCB, Semiconductor, Battery Industry, Small Metal Casting, Electronic Connector Module, Cables, Aerospace Components, Photovoltaic Industry, etc.
- Features
- Max. loading area 645*670mm, max. inspection area 565mm*510mm, with 44.7X Geometric Magnification
- Tilt detection with 55° and rotation 360°operation together with 6 axis movement
- X-ray tube & detector automatic lifting and descending, with convenient target point positioning system
- Multi-function DXI image processing system, CNC programmable detection
- 130kV 7µm closed X-ray tube, high speed & Millions pixels high resolution FPD

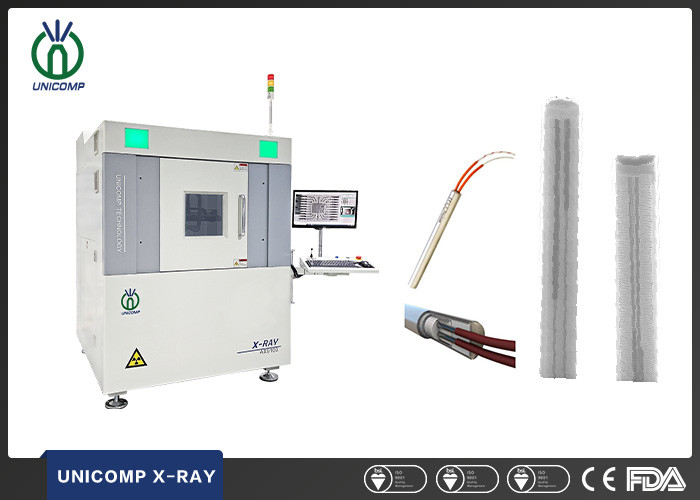

- X-ray Images
- Technical Specifications
| Item | Description | Specifications |
| X-Ray Tube | Max. Voltages, Type |
130kV , Closed |
| Power Consumption | 1200W | |
| Focal Spot Size | 7 μm | |
| Magnification | 52X | |
| Detector | Detector Type | FPD |
| Resolution | 101 LP/cm | |
| Effective Area | 129mm ×129mm | |
| System Computer | Operating System | Industrial PC, Win 11, i7 Processor |
| Monitor | 27” LCD | |
| Software | User Interface | Unicomp Multi-function DXI image processing system |
| Working Platform | Max. Loading Area | 645*670mm |
| Max. Inspection Area | 565mm×510mm | |
| Max. Loading Weight | 10kg | |
| Movement Control | Joysticks, Mouse and Keypads | |
| Motion Range (Up and Down) | 200mm | |
| Table Tilting Angle | 55° Tilting and 360° Rotation | |
| Navigation | Camera | HD Camera, Laser point |
| Axis | Manipulator | 6-axis with X1/ X2 / Y / Z / T(55°) / R(360°) |
| Equipment Features | Power Supply | AC 220V (±10%) 50Hz, 1.2kW |
| Outline Dimensions | 1650(W)×1650(D)×2050(H)mm | |
| System Weight | 1750 kg | |
| Optional Accessories | None | |
| Warranty |
One year warranty , free replacement the parts due to original manufacturer's defect, but expect of man-made damages and force majeure |
|
