Semiconductor High Resolution Welding X Ray Machine 90KV 5um

Semiconductor High Resolution Welding X Ray Machine 90KV 5um
Semiconductor High Resolution Welding X Ray Machine 90KV 5um

Large Image :  Semiconductor High Resolution Welding X Ray Machine 90KV 5um

Product Details:
Place of Origin: China
Brand Name: UNICOMP
Certification: CE, FDA
Model Number: AX8200
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: can negotiate
Packaging Details: Wooden Case, Waterproof, Anti-collision
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 300 sets per month
Detailed Product Description
Name: Unicomp X-ray Inspection Machine Application: SMT, EMS,BGA, Electronics, CSP , LED , Flip Chip , Semiconductor
Tube Voltage: 100KV Industry: Electronics Industry
Size: 1080(L)x1180(W)x1730(H)mm X-ray Leakage: < 1uSv/h
Weight: 1150kg Power Consumption: 0.8kW
High Light:

High Resolution Welding X Ray Machine

,

Semiconductor Welding X Ray Machine

,

90KV Welding X Ray Machine

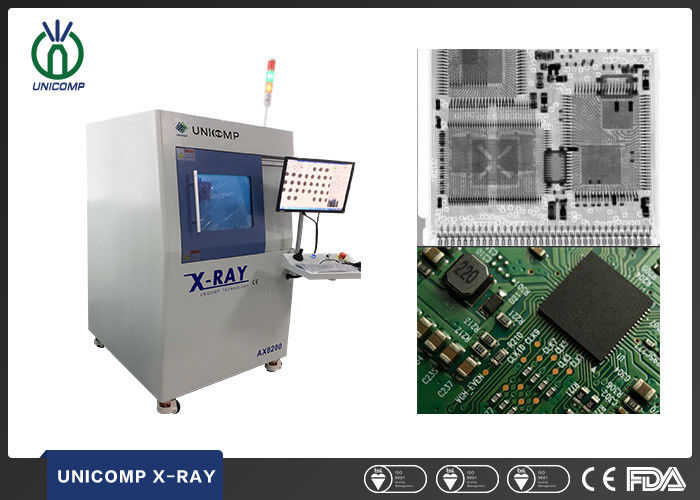

90kV 5um High Resolution And Long Lifespan X-Ray Machine For SMD PCBA Soldering Qualtiy Inspection​



The AX-8200 machine is designed to provide high resolution x-ray imaging primarily for the electronics industry. This versatile system is effective for many applications within the PCB manufacturing process. This includes BGA, CSP, QFN, Flip Chip, COB and the wide range of SMT components. The AX-8200 is a powerful support tool for process development, process monitoring and refinement of the rework operation. Supported by a powerful and easy to use software interface, the AX-8200 is capable of addressing small and large volume factory requirements. (Contact us for details)




Features:


● 100KV 5μm X-ray tube, image intensifier with 2 mega pixels CCD camera.

● Motion controls include: ±60° tilt motion, X/Y table motion plus Z axis tube and detector movement.
● Max. loading area 510mm x 420mm, max. detection area 435 x 385mm with ~300X System Magnification.
BGA void/area auto-measurement plus report generation.

● Multi-function DXI image processing system
● X/Y programming function for multiple image inspection routines



Applications:



  • Battery Industry , Small Metal Casting,
  • Electronic Connector Module,
  • BGA , CSP , LED , Flip Chip , Semiconductor,
  • Aerospace Components , Photovoltaic Industry,
  • Other Special Industries.

Item

Definition

Specs

System Parameters

Size

1080(L)x1180(W)x1730(H)mm

Weight

1150kg

Power

220AC/50Hz

Power Consumption

0.8kW

X-ray Tube

Type

Closed

Max.Voltage

90kV/100kV

Max.Power

8W

Spot Size

5μm

X-ray System

Intensifier

4"Image Intensifier

Monitor

22"LCD

System Magnification

600x

Detection Region

Max.Loading Size

510mm x 420mm

Max.Inspection Area

435mm x 385mm

X-ray Leakage

< 1uSv/h



Inspection Images:

Semiconductor High Resolution Welding X Ray Machine 90KV 5um 0
