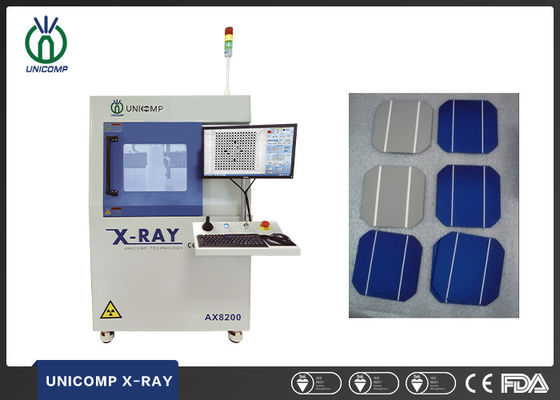

CSP AX8200 Electronics X Ray Machine 100KV For Solar Cell Soldering

CSP AX8200 Electronics X Ray Machine 100KV For Solar Cell Soldering
CSP AX8200 Electronics X Ray Machine 100KV For Solar Cell Soldering

Large Image :  CSP AX8200 Electronics X Ray Machine 100KV For Solar Cell Soldering

Product Details:
Place of Origin: China
Brand Name: UNICOMP
Certification: CE, FDA
Model Number: AX8200
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: can negotiate
Packaging Details: Wooden Case, Waterproof, Anti-collision
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 300 sets per month
Detailed Product Description
Name: Electronics X Ray Machine Application: SMT, EMS,BGA, Electronics, CSP , LED , Flip Chip , Semiconductor
Tube Voltage: 100KV Max.Voltage: 90kV/100kV
X Ray Tube Type: Closed X-ray Leakage: < 1uSv/h
High Light:

Solar Cell Soldering Electronics X Ray Machine


Electronics X Ray Machine 100KV


CSP X Ray Equipment

SMT X-Ray Closed 5g Chipset Electronic Resistance Inspection Machine AX8200

The AX-8200 machine is designed to provide high resolution x-ray imaging primarily for the electronics industry. This versatile system is effective for many applications within the PCB manufacturing process. This includes BGA, CSP, QFN, Flip Chip, COB and the wide range of SMT components. The AX-8200 is a powerful support tool for process development, process monitoring and refinement of the rework operation. Supported by a powerful and easy to use software interface, the AX-8200 is capable of addressing small and large volume factory requirements. (Contact us for details)




  • BGA Inspection
  • Electronic components
  • SMT assemblies
  • Pharmaceuticals
  • Automotive assemblies
  • Agriculture
  • Counterfeit inspection
  • Cell phone battery inspection
  • Inspection of over molded electrical connectors
  • Encapsulated components
  • Aluminum die castings
  • Molded plastic components
  • Ceramics
  • Aerospace components
  • Electrical / mechanical component


System Summary
Footprint 1080(W)×1180(D)×1730(H)mm
Machine Weight 1050 kg
Power Supply AC 110~220V, 50/60Hz
Plywood Packing Size 146(W)×128(D)×196(H)cm
Packing Weight 1160 kg
Power Consumption 1.0 kW
X-Ray Tube
Tube Type Sealed
Max. Power 8W
Voltage 0~90kV (Adjustable)
Focus Spot Size 5μm
Imaging System
Detector Flat Panel Detector (option 4’’ i.i. Detector)
Pixel Size 85μm
Effective Detection Area 130*130mm
Frame Rates 20fps
Pixel Matrix 1536*1536
System Magnification 600X
Auto-measuring BGA Soldering Voids Auto-measuring and Support Data/Graphic Output
Multiple Measuring Tools Support Measuring Distance, Angle, Diameter, Polygon, PTH filling rate, etc.
CNC Mode CNC Programmable Inspection, Easy Operation and User Friendly
Real-time Display Real-time Displaying the Working Data of Voltage, Current, Angle, Date, etc
Navigation Laser Locator for Precise Location
Motion Control System
Movement Control Joystick, Keypad & Mouse
Max. Loading Area/Weight 510*420mm / 10kg
Max. Inspection Area 435*385mm
Oblique Views Max. ±60°
Manipulator 5-axis with X / Y / Z1 / Z2 / T
Industrial PC
Monitor 22’’ FHD LCD Display
System OS Windows 10 64bit
Hard disk 1TB
CPU model Intel i7 Processor
Other Features
Energy Saving X-Ray Auto-off when it's out of work over than 5 minutes
Safety Operation Electromagnetic Interlock and warning Light
Portable Design Mounted with Wheels on Machine Bottom
X-Ray Safety <1μSv/h (Meets All International Standards)
