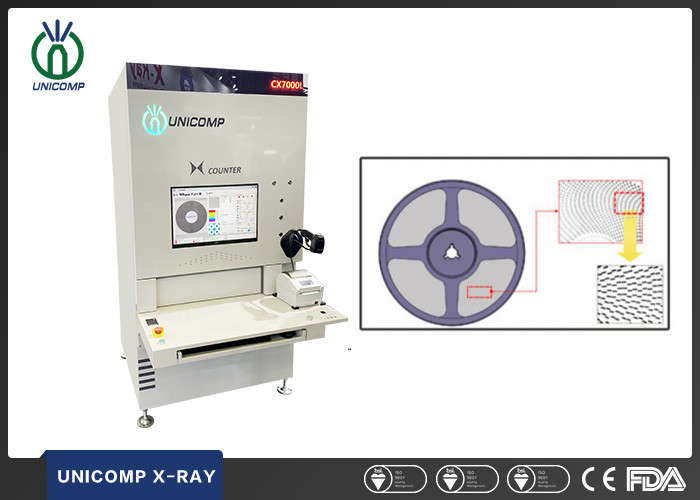

ERP 1.1kW SMD Chip Components Counter For SMT Production

Basic Properties
Place of Origin: China
Brand Name: UNICOMP
Certification: CE
Model Number: CX7000L
Trading Properties
Minimum Order Quantity: 1Set
Price: Can negotiate
Payment Terms: T/T, L/C
Supply Ability: 300 sets per month
Tags

electronic parts counter

x ray counter

electronic component counter
Product Summary
Features ● Automatic inspection, no need on programs switch for different components ● Fast speed and high accurate chip counting, reducing labor costs ● No chip damage or lost with non-destructive counting ● Compatible with 7”~17” tape & reels ● Automatic link with ERP & MES System, and storage ...

Product Details

Highlight:

ERP SMD Chip Components Counter

,

1.1kW SMD Chip Components Counter

,

SMT Production X Ray Electronic Counter
Dimension: 1000 Mm*1370 Mm*1962mm
Application: Electronics, LED , Flip Chip , Semiconductor
Tunnel Size: 440mm
Max.Current: 700 μA
Maximum Inspection Speed: 7”~17” Tape & Real Is Less Than 12s/Real, 7”*4 Is Less Than 13s.
Detected Project Size: 30-450 Thickness Les S Than 50mm
Product Description

Features



● Automatic inspection, no need on programs switch for different components

● Fast speed and high accurate chip counting, reducing labor costs

● No chip damage or lost with non-destructive counting

● Compatible with 7”~17” tape & reels

● Automatic link with ERP & MES System, and storage system

● Shielded cabinet protection to guarantee Safety leakage of X-ray

● Fast counting Speed:12~13s/Reel

● Inspection Accuracy: ≥99.9%

● Min. Package: 01005

● One-button operation, automatic counting

● Hand-operated label reading, new label printing and sticking

● Special advantage for incoming inspection and inventory management

● Real-time radiation leakage monitoring





Main Configuration



1. Bar-code Scanner

2. X-ray System

3. Label Printer

4. Finger Printer Recognition System



Equipment Features Footprint (W*D*H) / Machine Weight 1000 mm*1370 mm*1962 mm / 1160 kg
Package Plywood Case, 110 cm*145 cm*210 cm, Total 1450 kg
Power Consumption 1.1 kW
Power Supply AC 110~220V (±10%) 50Hz
Working Mode Off-line
System Computer Operating System Industrial PC, Windows OS , i7 CPU
Monitor 22” LCD
X-Ray Tube Max. Voltage 80 kV
Max. Current 700 μA
Focal Spot Size 0.03 mm
Detector FPD Detector Pixel Size 139 μm
Effective Detection Area 430*430 mm
Pixel Matrix 3072*3072
  Frame Rates / AD Bits 14 fps / 16 Bits
Detection Parameters Inspection Tape & Real Size 7”~17”
Scan height ≤88mm
Maximum Inspection Speed 7”~17” Tape & Real is less than 12s/Real, 7”*4 is less than 13s.
Inspection Min. Component 01005
Inspection Accuracy ≥99.9%
Detectable item Capacitors, resistors, inductors, beads, crystals, transistors, diodes, FETs, various types of resistors, bile capacitors, detectable connectors, integrated circuit chips, etc.
Accessories Barcode Scanning, Printer, Fingerprint Recognition System



X-Ray Safety: All X-ray machines manufactured by Unicomp Technology meet the FDA-CDRH Regulation CFR 21 1020.40 Subchapter J for cabinet x-ray systems. The FDA - CDRH standard for cabinet x-ray systems states that radiation emission will not exceed. 5millirem a /hr.2"from any external surface. Our machines (Leakage <1μSv/h) are typically 5-10 times less than the international standards,



¢ Specifications are subject to change without notice, all trademarks are the property of the system maker.
