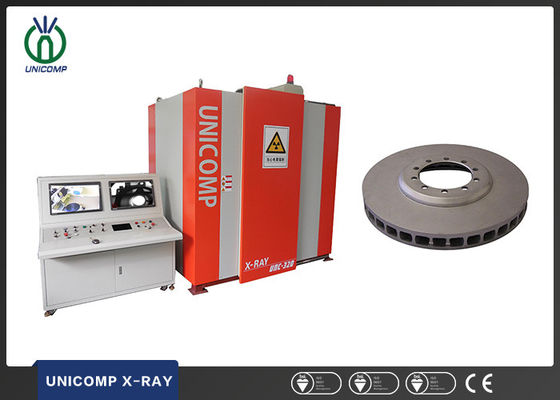

Dynamic Precise Casting Part Inspection Real Time X-ray Image System
The UNC320 is the newest standard system. Whether you are inspecting small or large components, the UNC320 is the best option for customers needing a compact system with unique capabilities generally available on a larger X-ray or CT system.
SYSTEM CAPABILITIES
Advanced 2D X-ray inspection
Overall Maximum System Resolution: ~5 microns
50cm diameter x 80cm tall nominal part envelope
Comprehensive acquisition, processing and archival program with user-friendly interface
High performance image processing and measurement functions
Non-proprietary multiple image format
X-RAY SOURCE
Micro-focus X-ray tube
Voltage Range: 320 kV
Minimum Focal Spot Size: ~5 microns
MANIPULATOR
Maximum Sample Weight: 150kg
CABINET
External Dimension: 2290mm*1604mm*2598mm(L*W*H)
Cabinet Features: interior lighting, sliding access door, leaded glass viewing window
Exact specifications vary depending on tube, detector, and other optional configurations.
| System Parameters | |
| Dimensions | 2100mm*1720mm*2470mm(L*W*H) |
| Equipment weight | 3.5T |
| Power | 6kW |
| Maximum penetration (AL/FE) | 100mm/20mm |
| Detection range | Φ500*800mm |
| Load weight | 50kg |
| Work environment | 5-40° ≤80%HR |
| Power supply | Three-phase five wire system AC380V |
| X-ray leakage dose rate | ≤1μSv/h |
| X-ray Generator | |
| Tube voltage | 160kV |
| Power | 480W |
| Focal size | 0.5mm |
| Detector (FPD) | |
| Image area | 17’’×17’’ |
| Pixel matrix | 3072×3072 |
| Pixel pitch | 139μm |
| Frame rate | 0.5fps(1×1)1.5 fps(2×2) |
| Software Function | |
| Image processing | brightness and contrast adjustment; stacking frames, window width and level adjustment; image enhancement, filtering, sharpening, invert, relief and bubble measure;ove, zoom in, zoom out, display image scaling, display the current mouse coordinates and gray values |
| Image measurement | distance, radius, polygon, angle measurement; arrows and text labels; save the image after processing |
| Motion control | the speed adjustment of each moving axis; CNC programming; manual operation; |
| Additional function | |
| ● CNC programmable control, to save the detection time of the bulk of the workpiece | |
| ● C type arm five detection mechanism, no dead angle detection | |
| ● Servo stepper motor drive, stable operation | |
| ● Voltage regulator, isolation, filtering, grounding and other protective functions are complete | |
| ● Set aside industrial cloud interface, data and pictures in real time upload, with traceability and large data analysis(optional) | |
| * Specifications are subject to change without notice, All trademarks are the property of the system maker. | |
Our industrial solutions have a wide range of advantages
1. Sophisticated proprietary image analyzing algorithms which allow to realize reliable automatic detection systems of non-conformities.
2. Statistics, computer assisted measurement, post-analysis, remote workstations, archiving, integration into customer’s network and production management systems.
3. Modular design, broad range of accessories and options for maximum compliance with customer’s production and quality assurance processes
4. Flexibility and compact design our industrial installations can be adopt into the most manufacturing chains in combination with operator or automatic control.
5. Ultra low radiation dose is an effective solution for scanning different automotive parts loaded on the hanging conveyor line.
X-RAY DETECTOR
Digital X-ray detector types: Flat Panel
Grade Options: Standard, Premium,
Detector Size: up to 50 cm x 80 cm
Software Function
Image processing: brightness and contrast adjustment; stacking frames, window width and level adjustment; image
enhancement, filtering, sharpening, invert, relief and bubble measure;ove, zoom in, zoom out, display image scaling,
display the current mouse coordinates and gray values;
Image measurement: distance, radius, polygon, angle measurement; arrows and text labels; save the image after
processing;
Other: Set the camera rotation screen;exposure time:static, dynamic image display, save, video display, save.
