Stacking Frames 320KV Industrial X Ray Scanner For Vehicle Parts

Stacking Frames 320KV Industrial X Ray Scanner For Vehicle Parts
Stacking Frames 320KV Industrial X Ray Scanner For Vehicle Parts

Large Image :  Stacking Frames 320KV Industrial X Ray Scanner For Vehicle Parts

Product Details:
Place of Origin: China
Brand Name: UNICOMP
Certification: CE
Model Number: UNC320
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Can Negotiate
Packaging Details: Wooden Case, Waterproof, Anti-collision
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 10 sets per month
Detailed Product Description
Work Environment: 5-40° ≤80%HR Tube Voltage: 320KV
Industry: Industry Nondestructive Tester Detection Range: Φ500*800mm
Brand: Unicomp Origin: China
High Light:

Stacking Frames Industrial X Ray Scanner

,

320KV Industrial X Ray Scanner

,

Vehicle Parts Industrial X Ray Machine

Dynamic Precise Casting Part Inspection Real Time X-ray Image System

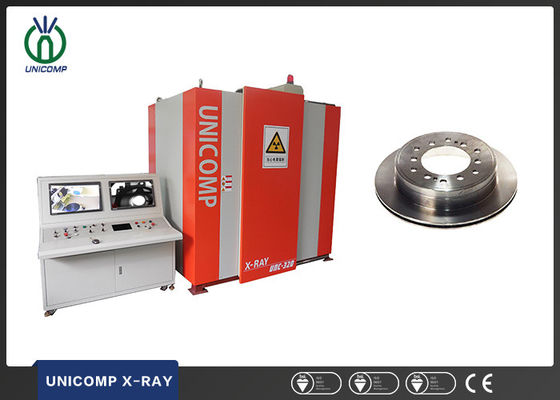

The UNC320 is the newest standard system. Whether you are inspecting small or large components, the UNC320 is the best option for customers needing a compact system with unique capabilities generally available on a larger X-ray or CT system.





SYSTEM CAPABILITIES



Advanced 2D X-ray inspection



Overall Maximum System Resolution: ~5 microns



50cm diameter x 80cm tall nominal part envelope



Comprehensive acquisition, processing and archival program with user-friendly interface



High performance image processing and measurement functions



Non-proprietary multiple image format





X-RAY SOURCE



Micro-focus X-ray tube



Voltage Range: 320 kV



Minimum Focal Spot Size: ~5 microns





MANIPULATOR



Maximum Sample Weight: 150kg





CABINET



External Dimension: 2290mm*1604mm*2598mm(L*W*H)



Cabinet Features: interior lighting, sliding access door, leaded glass viewing window



Exact specifications vary depending on tube, detector, and other optional configurations.





Our industrial solutions have a wide range of advantages



1. Sophisticated proprietary image analyzing algorithms which allow to realize reliable automatic detection systems of non-conformities.



2. Statistics, computer assisted measurement, post-analysis, remote workstations, archiving, integration into customer’s network and production management systems.



3. Modular design, broad range of accessories and options for maximum compliance with customer’s production and quality assurance processes



4. Flexibility and compact design our industrial installations can be adopt into the most manufacturing chains in combination with operator or automatic control.



5. Ultra low radiation dose is an effective solution for scanning different automotive parts loaded on the hanging conveyor line.





X-RAY DETECTOR



Digital X-ray detector types: Flat Panel



Grade Options: Standard, Premium,



Detector Size: up to 50 cm x 80 cm



Software Function
Image processing: brightness and contrast adjustment; stacking frames, window width and level adjustment; image
enhancement, filtering, sharpening, invert, relief and bubble measure;ove, zoom in, zoom out, display image scaling,
display the current mouse coordinates and gray values;
Image measurement: distance, radius, polygon, angle measurement; arrows and text labels; save the image after
processing;
Other: Set the camera rotation screen;exposure time:static, dynamic image display, save, video display, save.



System Parameters
Dimensions 2100mm*1720mm*2470mm(L*W*H)
Equipment weight 3.5T
Power 6kW
Maximum penetration (AL/FE) 100mm/20mm
Detection range Φ500*800mm
Load weight 50kg
Work environment 5-40° ≤80%HR
Power supply Three-phase five wire system AC380V
X-ray leakage dose rate ≤1μSv/h
X-ray Generator
Tube voltage 160kV
Power 480W
Focal size 0.5mm
Detector (FPD)
Image area 17’’×17’’
Pixel matrix 3072×3072
Pixel pitch 139μm
Frame rate 0.5fps(1×1)1.5 fps(2×2)
Software Function
Image processing brightness and contrast adjustment; stacking frames, window width and level adjustment; image enhancement, filtering, sharpening, invert, relief and bubble measure;ove, zoom in, zoom out, display image scaling, display the current mouse coordinates and gray values
Image measurement distance, radius, polygon, angle measurement; arrows and text labels; save the image after processing
Motion control the speed adjustment of each moving axis; CNC programming; manual operation;
Additional function
● CNC programmable control, to save the detection time of the bulk of the workpiece
● C type arm five detection mechanism, no dead angle detection
● Servo stepper motor drive, stable operation
● Voltage regulator, isolation, filtering, grounding and other protective functions are complete
● Set aside industrial cloud interface, data and pictures in real time upload, with traceability and large data analysis(optional)
* Specifications are subject to change without notice, All trademarks are the property of the system maker.
