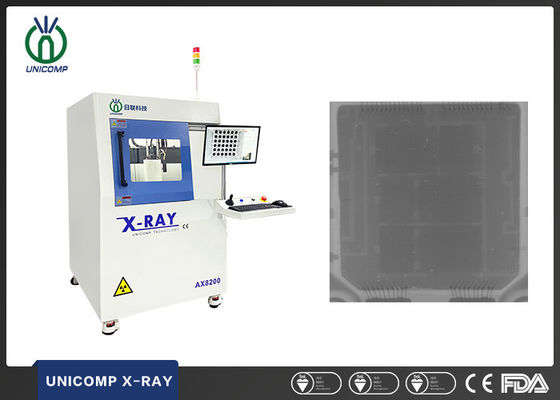

5um X Ray Inspection Equipment 90kV AX8200MAX For SMT PCBA IGBT

5um X Ray Inspection Equipment 90kV AX8200MAX For SMT PCBA IGBT
5um X Ray Inspection Equipment 90kV AX8200MAX For SMT PCBA IGBT

Large Image :  5um X Ray Inspection Equipment 90kV AX8200MAX For SMT PCBA IGBT

Product Details:
Place of Origin: China
Brand Name: UNICOMP
Certification: CE, FDA
Model Number: AX8200
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: can negotiate
Packaging Details: Wooden Case, Waterproof, Anti-collision
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 300 sets per month
Detailed Product Description
Name: Electronics X Ray Machine Application: SMT, EMS,BGA, Electronics, CSP , LED , Flip Chip , Semiconductor
Tube Voltage: 100KV Max.Voltage: 90kV/100kV
X Ray Tube Type: Closed X-ray Leakage: < 1uSv/h
High Light:

5um X Ray Inspection Equipment


X Ray Inspection Equipment 90kV


IGBT X Ray Scanning Machine

SMT X-Ray Closed 5g Chipset Electronic Resistance Inspection Machine AX8200


  • Your inquiry will be replied in 12 hours.
  • Original Manufacture to customers, with competitive price.
  • We provide one year warranty, free training and whole life technology support.
  • We can arrange the shipment by air, DHL,Fedex, UPS, and by Sea,etc for you,and will give you the tracking NO. after shipment.
  • Well-trained and Professional after-sales service team to support you.
  • Manual will package with machine . It will show you how to use machine step by step.
  • Items are only shipped after payment is received.


The AX-8200 machine is designed to provide high resolution x-ray imaging primarily for the electronics industry. This versatile system is effective for many applications within the PCB manufacturing process. This includes BGA, CSP, QFN, Flip Chip, COB and the wide range of SMT components. The AX-8200 is a powerful support tool for process development, process monitoring and refinement of the rework operation. Supported by a powerful and easy to use software interface, the AX-8200 is capable of addressing small and large volume factory requirements. (Contact us for details)



Item Definition Specs
System Parameters Size 1080(L)x1180(W)x1730(H)mm
Weight 1150kg
Power 220AC/50Hz
Power Consumption 0.8kW
X-ray Tube Type Closed
Max.Voltage 90kV/100kV
Max.Power 8W
Spot Size 5μm
X-ray System Intensifier 4"Image Intensifier
Monitor 22"LCD
System Magnification 600x
Detection Region Max.Loading Size 510mm x 420mm
Max.Inspection Area 435mm x 385mm
X-ray Leakage

< 1uSv/h





  • BGA Inspection
  • Inspection of over molded electrical connectors
  • Encapsulated components
  • Aluminum die castings
  • Molded plastic components
  • Ceramics
  • Aerospace components
  • Electrical / mechanical components
  • Electronic components
  • SMT assemblies
  • Pharmaceuticals
  • Automotive assemblies
  • Agriculture
  • Counterfeit inspection
  • Cell phone battery inspection

5um X Ray Inspection Equipment 90kV AX8200MAX For SMT PCBA IGBT 0 AX8200.pdf
