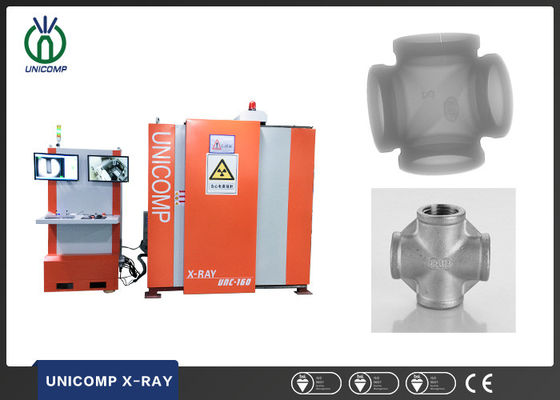

160kV Radiography Unicomp X Ray 6KW For Cylinder Head Steel Pipe

160kV Radiography Unicomp X Ray 6KW For Cylinder Head Steel Pipe
160kV Radiography Unicomp X Ray 6KW For Cylinder Head Steel Pipe

Large Image :  160kV Radiography Unicomp X Ray 6KW For Cylinder Head Steel Pipe

Product Details:
Place of Origin: China
Brand Name: UNICOMP
Certification: CE
Model Number: UNC160
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: can negotiate
Packaging Details: Wooden Case, Waterproof, Anti-collision
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 10 sets per month
Detailed Product Description
Name: X-ray Inspection Machine Application: Aluminum Casting, Iron Casting, Auto Parts, Wheels, Metal Products, Refractory Materials
Tube Voltage: 160KV Industry: Industry Nondestructive Testing
Size: 2100(L)x1720(W)x2470(H)mm X-ray Leakage: < 1uSv/h
Weight: 3.5T Power Consumption: 6kW
High Light:

160kV Radiography Unicomp X Ray


Cylinder Head Unicomp X Ray


X Ray Inspection Machine 6KW

Wheel Hub / Rim Casting Parts Quality Control By Unicomp High Penertration UNC160 X-Ray System



● Strong penetration,high reliable,low breakdown, long life;
● High definition,resolution FPD;
● Multi-functional workstation,360°rotation and shift;
● High automation,fast detection speed;
● User friendly software design for interfacing and to facilitate,customize software function development requirement.



System Parameters Dimensions 2100mm*1549mm*2468mm(L*W*H)
Equipment weight 3.5T
Power 6KW
Maximum penetration(AL/FE) 100mm/20mm
Detection range Φ500*800mm
Load weight 50kg
Work environment 5-40° ≤80%HR
Install power Three-phase five wire system AC380V
X-ray leakage dose rate ≤1uSv/h
X-ray Generator Tube voltage 160kV
Power 480W
Focal size 0.5mm
Detector Image area 145mm x 145mm
Resolution 3.0LP/mm
Detector ( Selection FPD ) Image area 17’’x17’’
Pixel matrix 3072mm*3072mm
Pixel size 139μm
Frame rate 9fps(1x1)30fps(2x2)
Software Functions Image processing Brightness and contrast adjustment; stacking frames; window width and level adjustment; image enhancement, filtering, sharpening, invert, relief and bubble measure; move, zoom in, zoom out; display image scaling; display the current mouse pointer image coordinate and the gray value
Image measurement Distance, radius, polygon, angle measurement; arrows and text labels; save the processed image;
Motion control Speed adjustment of each moving axis; CNC programming; manual operation
Additional Function Save the detection time of the bulk of the work piece via the CNC programmable control
No dead angle detection with C-arm five-axis motion detection mechanism
Servo stepper motor drive to make the operation stability
Voltage regulator, isolation, filtering, grounding and other protective functions are complete
Set aside industrial cloud interface, data and pictures in real time upload, with traceability and large data analysis function (optional)



Inspection Images:


160kV Radiography Unicomp X Ray 6KW For Cylinder Head Steel Pipe 0



● Cast parts and pressure Vessels

● Steel pipe,Cylinder and Wood

Epoxy Resin Defect Detection
● Wheel,Tires and Metal parts
