Product Details:
Payment & Shipping Terms:
|

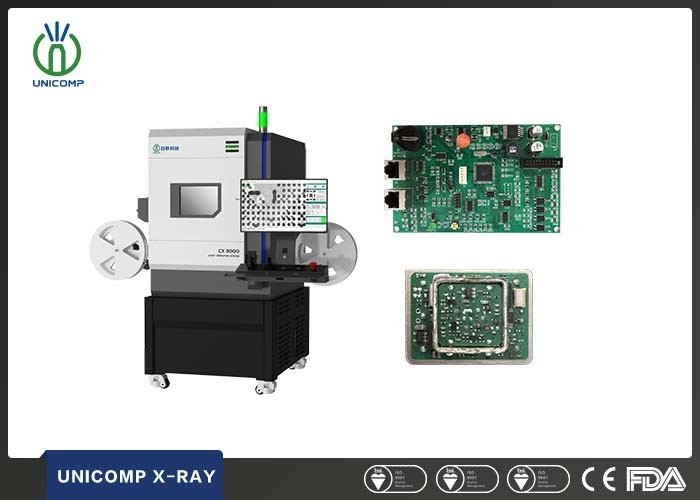

| Name: | Electronics X Ray Machine | Application: | SMT, EMS,BGA, Electronics, CSP , LED , Flip Chip , Semiconductor |
|---|---|---|---|
| X-ray Coverage: | 48mm X 54mm | X-ray Leakage: | < 1uSv/h |
| Weight: | 300kg | Power Consumption: | 0.5kW |
| High Light: | BGA CSP Electronics X Ray Machine,0.5kW Electronics X Ray Machine,100kV X Ray Inspection Equipment |
||
X-ray inspection for Electric Cable Wire Inner Quality Check for broken and twrist defect
OUR SERVICE
1. Your inquiry will be replied in 12 hours.
2. Original Manufacture to customers, with competitive price.
3. We provide one year warranty, free training and whole life technology support.
4. We can arrange the shipment by air, DHL,Fedex, UPS, and by Sea,etc for you,
and will give you the tracking NO. after shipment.
5. Well-trained and Professional after-sales service team to support you.
6. Manual will package with machine . It will show you how to use machine step by step.
7. Items are only shipped after payment is received.
| Item | Definition | Specs |
| System Parameters | Size | 750(L)x570(W)x890(H)mm |
| Weight | 300kg | |
| Power | 220AC/50Hz | |
| Power Consumption | 0.5kW | |
| X-ray Tube | Type | Closed |
| Max.Voltage | 100kV | |
| Max.Power | 200μA | |
| Spot Size | 5μm | |
| Detector | Intensifier | FPD |
| X-ray Coverage | 48mm x 54mm | |
| Resolution | 208Lp/cm | |
| Work Station | Max.Loading Size | 200mm x 200mm |
| Max.Inspection Area | 200mm x 200mm | |
| Oblique Angle Views | 360° rotary fixture (Optional) | |
| X-ray Leakage | <1μSv/h | |
FEATURES:
1. 5μm 100kV X-ray tube;
2. Dynamic FPD with high-resolution of 1000×1124;
3. Equipped with 360° rotary fixture to eliminate PoP shadow;
4. The detection area easily positioned by external rocker;
5. Inspection & Analysis of soldering joint and materials inner structure;
6. High safety with seamless lead welding, interlock and emergency button.
