| Name: | Unicomp X-ray Inspection Machine | Application: | SMT, EMS,BGA, Electronics, CSP , LED , Flip Chip , Semiconductor |
|---|---|---|---|
| Tube Voltage: | 80KV/90KV | Industry: | Electronics Industry |
| Size: | 1100(L)x1100(W)x1500(H)mm | X-ray Leakage: | < 1uSv/h |
| Weight: | 1000kg | Power Consumption: | 0.8KW |
| Highlight: | CSP LED Benchtop X Ray Machine,0.8KW Benchtop X Ray Machine,DXI System X Ray Security Scanner |
||

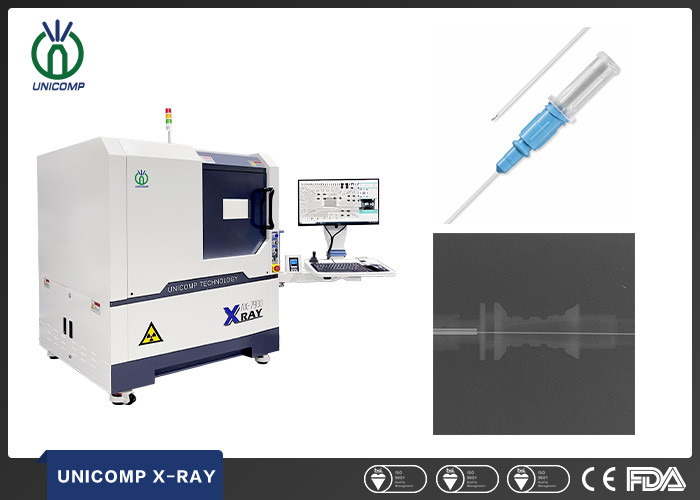

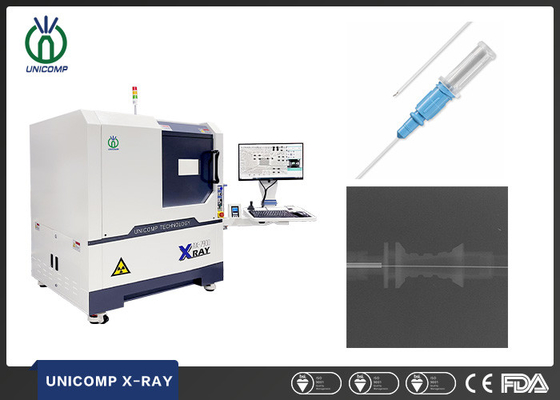

Venous Indwelling needle inside assembly quality inspection by Unicomp AX7900 X-ray machine
Description:
90KV 5μm X-ray tube, FPD Detector. Multi-function workstation, XY multi-axis movement standard with ±60° tilt motion (option). Z axis movement for x-ray tube & FPD to increase/decrease magnification/FOV. Convenient target point positioning system. Multi-function DXI image processing system with XY programming for multiple image inspection routines. Max. loading area 420mm x 420mm , max. detection area 380 x 380mm, with ~300X System Magnification.
FEATURES:
90KV 5μm X-ray tube, FPD Detector.
Multi-function workstation, X-Y multi-axis movement. ±60° "Arc" motion(Option).
Motion controls include: X/Y table motion plus Z axis tube and detector movement, ±60° tilt motion (option).
Multi-function DXI image processing system.
X/Y programming function for multiple image inspection routines
Max. loading area 420mm x 420mm, max. detection area 380 x 380mm, with ~300X System Magnification.
BGA void/area auto-measurement plus report generation.
APPLICATION:
LED, SMT, BGA, CSP, Flip Chip Inspection.
Semiconductor, Packaging components, Battery Industry.
Electronic components, Auto parts, Photovoltaic Industry.
Aluminum Die Casting, Moulding Plastic.
Ceramics, Other Special Industries
| Item | Definition | Specs |
| System Parameters | Size | 1100(L)x1100(W)x1500(H)mm |
| Weight | 1000kg | |
| Power | 220AC/50Hz | |
| Power Consumption | 0.8kW | |
| X-ray Tube | Type | Closed |
| Max.Voltage | 80kV/90kV | |
| Max.Power | 12W/8W | |
| Spot Size | 5μm/15μm | |
| X-ray System | Intensifier | FPD |
| Monitor | 22 ‘’LCD | |
| System Magnification | 160 X/360X | |
| Detection Region | Max.Loading Size | 440mm x 400mm |
| Max.Inspection Area | 420mm x 380mm | |
| X-ray Leakage | <1μSv/h | |
