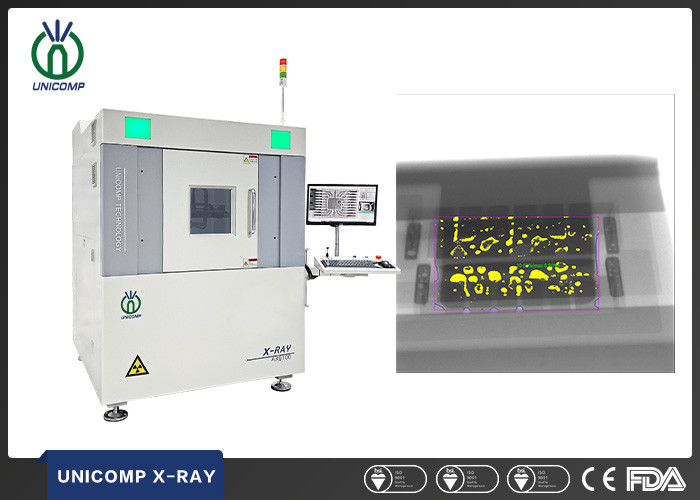

Electronics Industry Unicomp X Ray 130kV AX9100 For SMT PCBA LED Soldering
Basic Properties
Place of Origin:
China
Brand Name:
UNICOMP
Certification:
CE, FDA
Model Number:
AX9100
Trading Properties
Minimum Order Quantity:
1Set
Price:
can negotiate
Payment Terms:
T/T, L/C
Supply Ability:
300 sets per month
Product Summary
Unicomp factory supply 130kV microfocus AX9100 X-ray for SMT PCBA LED soldering void automatic measurement Applications: ● SMT, BGA, CSP, Flip Chip, LED Detection. ● Semiconductor, Packaging components, Battery Industry. ● Electronic components, Auto parts, Photovoltaic Industry. ● Aluminum Die...
Product Details
Highlight:
Electronics Industry Unicomp X Ray
,LED Soldering Unicomp X Ray
,SMT PCBA Electronics X Ray Machine
Name:
X-ray Inspection Machine
Application:
SMT, EMS,BGA, Electronics, CSP , LED , Flip Chip , Semiconductor
Tube Voltage:
130KV
Industry:
Electronics Industry
Size:
1350(L)x1250(W)x1700(H)mm
X-Ray Leakage:
< 1uSv/h
Weight:
1900kg
Power Consumption:
1.6kW
Product Description
Unicomp factory supply 130kV microfocus AX9100 X-ray for SMT PCBA LED soldering void automatic measurement
Applications:
● SMT, BGA, CSP, Flip Chip, LED Detection.
● Semiconductor, Packaging components, Battery Industry.
● Electronic components, Auto parts, Photovoltaic Industry.
● Aluminum Die-casting, Moulding Plastic.
● Ceramics, Other Special Industries.
Features:
● 90-130KV 7μm X-Ray tube.
● High speed & Millions pixels high resolution FPD.
● 1000X magnification, high-definition real-time image.
● One-button operation with 2.5D image display.
● Off-line programming function, navigation mode detection.
● 7 axis linkage, 70 degree tilt detection.
| Item | Definition | Specs |
| System Parameters | Size | 1350(L)x1250(W)x1700(H)mm |
| Weight | 1900kg | |
| Power | 220AC/50Hz | |
| Power Consumption | 1.6kW | |
| X-ray Tube | Type | Closed |
| Max.Voltage | 130kV | |
| Max.Power | 40W | |
| Spot Size | 7μm | |
| X-ray System | Intensifier | FPD |
| Monitor | 22 ‘’LCD | |
| System Magnification | 1600 X | |
| Detection Region | Max.Loading Size | Φ570mm |
| Max.Inspection Area | 450mm x 450mm | |
| X-ray Leakage | <1μSv/h | |
Test Images:
