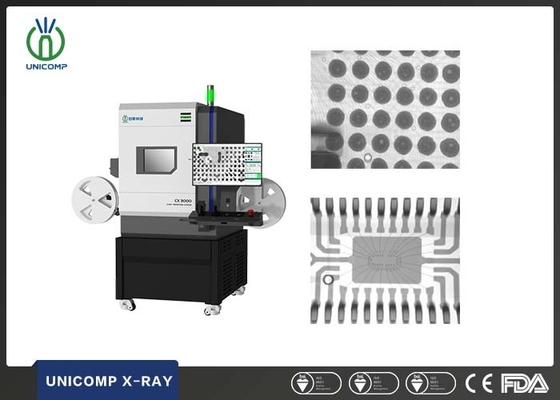

Unicomp 90kV 5um Closed Tube Electronics X Ray Machine For SMT PCBA BGA

Unicomp 90kV 5um Closed Tube Electronics X Ray Machine For SMT PCBA BGA
Unicomp 90kV 5um Closed Tube Electronics X Ray Machine For SMT PCBA BGA

Large Image :  Unicomp 90kV 5um Closed Tube Electronics X Ray Machine For SMT PCBA BGA

Product Details:
Place of Origin: China Guangdong
Brand Name: Unicomp
Certification: CE, FDA
Model Number: CX3000
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: can negotiate
Packaging Details: Wooden Case, Waterproof, Anti-collision
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 30 sets per month
Detailed Product Description
Name: Electronics X Ray Machine Application: SMT, EMS,BGA, Electronics, CSP , LED , Flip Chip , Semiconductor
X-ray Coverage: 48mm X 54mm X-ray Leakage: < 1uSv/h
Weight: 300kg Power Consumption: 0.5kW
High Light:

5um Electronics X Ray Machine


PCBA BGA Electronics X Ray Machine


90kV pcb x ray machine

Unicomp 90kV 5um Closed Tube Electronics X Ray Machine For SMT PCBA BGA


Unicomp 90kV 5um closed tube CX3000 X-ray Inspection System for SMT PCBA BGA QFN LED soldering void inspection



Specification Of Desktop X-Ray machine

Item Definition Specs
System Parameters Size 750(L)x570(W)x890(H)mm
Weight 300kg
Power 220AC/50Hz
Power Consumption 0.5kW
X-ray Tube Type Closed
Max.Voltage 100kV
Max.Power 200μA
Spot Size 5μm
Detector Intensifier FPD
X-ray Coverage 48mm x 54mm
Resolution 208Lp/cm
Work Station Max.Loading Size 200mm x 200mm
Max.Inspection Area 200mm x 200mm
Oblique Angle Views 360° rotary fixture (Optional)
X-ray Leakage <1μSv/h



Application of SMT X Ray machine

BGA , CSP , LED , Flip Chip , Semiconductor, Battery Industry , Small Metal Casting, Electronic Connector Module, Aerospace Components , Photovoltaic Industry, Other Special Industries.




1. Your inquiry will be replied in 12 hours.

2. Original Manufacture to customers, with competitive price.

3. We provide one year warranty, free training and whole life technology support.

4. We can arrange the shipment by air, DHL,Fedex, UPS, and by Sea,etc for you,and will give you the tracking NO. after shipment.

5. Well-trained and Professional after-sales service team to support you.

6. Manual will package with machine . It will show you how to use machine step by step.

7. Items are only shipped after payment is received.



FEATURES of Desktop X-ray machine


1. 5μm 100kV X-ray tube;

2. Dynamic FPD with high-resolution of 1000×1124;

3. Equipped with 360° rotary fixture to eliminate PoP shadow;

4. The detection area easily positioned by external rocker;

5. Inspection & Analysis of soldering joint and materials inner structure;

6. High safety with seamless lead welding, interlock and emergency button.



Description Of SMT X Ray machine

X-ray inspection is a non-destructive testing method that examines many types of manufactured components through the penetrating power of X-rays to verify internal structures.

This X-ray is designed to provide high-resolution X-ray imaging for the electronics industry. This versatile system is effective for many applications in the PCB manufacturing process. This includes BGA, CSP, QFN, flip chip, COB and various SMT components. is a powerful support tool for process development, process monitoring and refinement of rework operations. Backed by a powerful and easy-to-use software interface, x ray is able to meet the needs of small and large factories.
