Detailed Product Description
Tube Voltage: 0~90kV (Adjustable) Tube Type: Sealed
Focus Spot Size: 5μm Detector: Flat Panel Detector (FPD)
Packing Weight: 1500 Kg Power Supply: AC 110~220V, 50/60Hz
High Light:

Offline SMT EMS X Ray Machine

,

FPD SMT EMS X Ray Machine

,

SMT EMS metal x ray machine

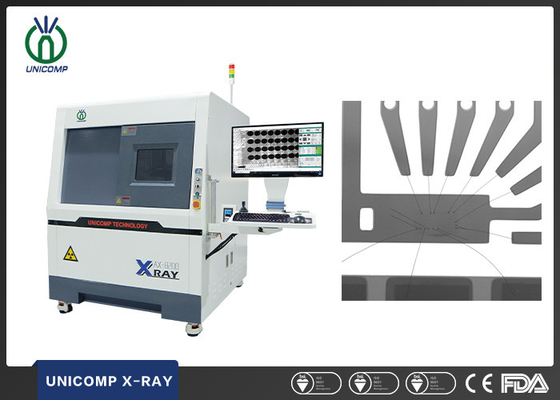

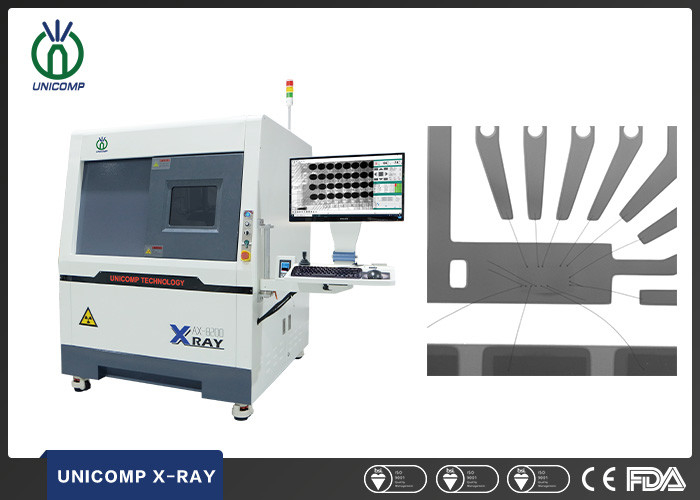

Offline AX8200Max SMT EMS X Ray Machine Auto Mapping Measurement



Unicomp offline AX8200Max X-ray with auto-mapping and measurement for BGA QFN LED soldering Void



Specification Of SMT X Ray machine

System Summary
Footprint 1280(W)×1500(D)×1705(H)mm
Machine Weight 1400 kg
Power Supply AC 110~220V, 50/60Hz
Plywood Packing Size 175(W)×155(D)×200(H)cm
Packing Weight 1500 kg
Power Consumption 1.0 kW
X-Ray Tube
Tube Type Sealed
Max. Power 8W
Voltage 0~90kV (Adjustable)
Focus Spot Size 5μm
Imaging System
Detector Flat Panel Detector (FPD)
Pixel Size 85μm
Effective Detection Area 130*130mm
Frame Rates 20fps
Pixel Matrix 1536*1536
System Magnification 600X
Software
Auto-measuring BGA Soldering Voids Auto-measuring and Support Data/Graphic Output
Multiple Measuring Tools Support Measuring Distance, Angle, Diameter, Polygon, PTH filling rate, etc.
CNC Mode CNC Programmable Inspection, Easy Operation and User Friendly
Real-time Display Real-time Displaying the Working Data of Voltage, Current, Angle, Date, etc
Navigation Convenient Target Point Positioning System
Motion Control System
Movement Control Joystick, Keypad, Mouse &Touch Panel
Max. Loading Area/Weight 610*610mm / 10kg
Max. Inspection Area 550*550mm
Oblique Views Max. 60°
Manipulator 6-axis with X / Y / Z1 / Z2 / T1 / T2
Industrial PC
Monitor 24’’ FHD Interactive Touch LCD Display
System OS Windows 10 64bit
Hard disk 1TB
RAM 8GB
CPU model Intel i7 Processor
Other Features
Door Open Electric Sliding
X-Ray Safety <1μSv/h (Meets All International Standards)
Authority Management Fingerprint Access Magnagement System, and Support Password Accessing.
Safety Operation Electromagnetic Interlock, Warning Light and Real-time Radioation Leakage Monitor
* Specifications are subject to change without notice, All trademarks are the property of the system maker.





Application Fields of X-ray machine



Widely applied for BGA , CSP , Flip Chip, LED , Fuse,Diode, PCB, Semiconductor, Battery Industry, Small Metal Casting, Electronic Connector Module, Cables,Aerospace Components, Photovoltaic Industry, etc.



Function & Features of X-ray machie

1. Large Size Inspection Table Laser Locator for Precise Location

2. 24’’ FHD Interactive Touch LCD Display

3. Accurate Control, CNC Programming Automatic Positioning

4. FPD 60° Tilting Inspection

5. Fingerprint Access Management System

6. Real-time Monitoring of Radiation
