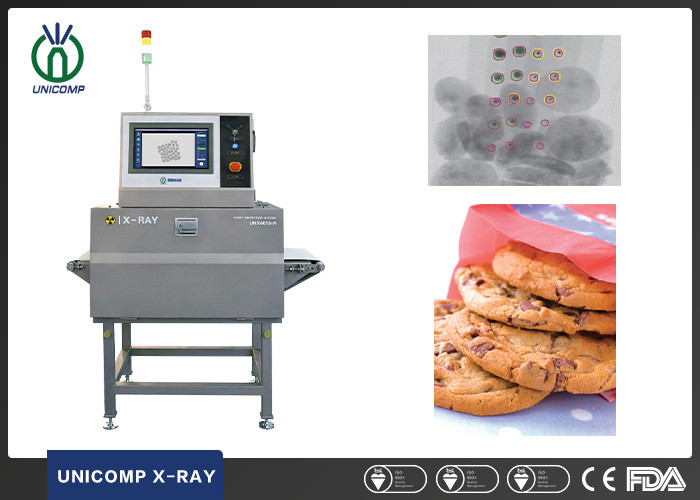

IP66 Auto Rejector X Ray Machine For Food Industry UNX4015N
Product Details
IP66 Food X Ray Machine
,60Hz Food X Ray Machine
,IP66 food x ray inspection machine
IP66 Auto Rejector X Ray Machine For Food Industry UNX4015N
Food X-Ray Inspection for checking dry pack food contamination with auto rejector
Technical Specifications of Food Xray machine
| Equipment Features |
Dimension | 1168(W)X985(D)X1510(H)mm |
| Machine weight | 500kg | |
| X-ray tube | 80-120kv/210-480W | |
| Power Supply | AC 110/220V, 50/60Hz | |
| Max. Loading weight | 10kg | |
| X-ray detector | Diode array with 0.4mm resolution | |
| Channel size | 400mm(W)*150mm(H) | |
| Conveyor Speed | 10-60M/min | |
| Heavy load Conveyor Speed | 10-40M/min | |
| Operating Range | 10°C to 40°C (50°F to 104°F),30% to 90% relative humidity non-condensing | |
| Capability | Detection Accuracy | SUS BALL≥ø0.3mm |
| SUS wire≥ø0.2*2mm | ||
| Glass ball≥ø1.0mm | ||
| Ceramic ball≥ø1.0mm | ||
| System Computer | Communications | 1*LAN,2*USB |
| Industrial PC | 17"LCD touch screen；Windows 10 | |
| Optional configuration | Rejector |
Sound-Light alarm, flipper,dropout,air jet, Pusher,chute,shuttle |
| Other | Ingress protection | Conveyor: IP66, Others: IP65 |
| X-Ray Safety | <1μSv/h |
APPLICATION of food Xray machine
UNX4015-N is used to detect foreign matter contaminants in small bags for lightweights products. Such as candy, fresh meat, prawn, vegetable, poultry, chocolates, candy, pasta, instant noodles, bread, biscuits, dried fish, ham sausage, beef jerky, nuts, etc.
Detection Image of Food
Features of UNX4015N
- Provide High precision automatic foreign detection, It can effectively identify metal, ceramic, glass, bone, shell and other malignant foreign matter in the product
- Sensitivity adjustment, alarm management, powerful data statistics report
- The detection sensitivity reaches the industry's highest standard Intelligent algorithm based on in-depth learning of AI
- Tool free for conveyor belt and protective curtains
Our Services
Help customer analyze product project and provide detection solution.
Freely sample detection test.
Provide professional detection solution.
Skilled jig design services.
Provide shipping/delivery information checking service.
One year guarantee, all life maintain promise.
24 hours feedback speed by email of others.
FAQ:
1. How about the package? Is it safe during the delivery?
All X-ray inspection machine is packed by standard strong wooden carton.It is safe when shipping.
2. Do you provide the Warranty? How about the after sales service?
1 year warranty free for spare parts, Whole life technicial support.
We have professional after sales team, if any question, assistant videos are also provided in after-sale service.
3. If we come to your factory, if you will provide the free training?
Yes, warmly welcome you to visit our factory, we will arrange the free training for you.
-
