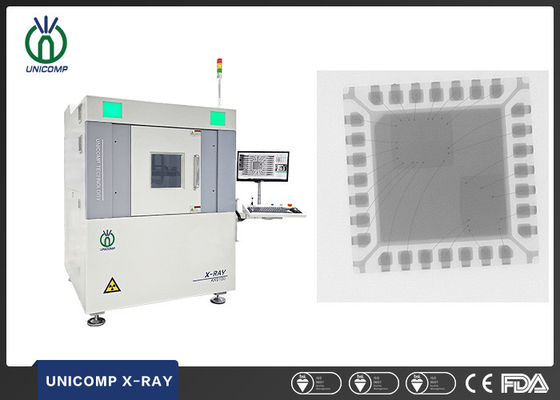

Microfocus 130KV Close Tube X Ray PCB Inspection Machine For SMT BGA CSP LED PCBA
Product Details
1.6kW x ray PCB inspection machine
,CSP x ray PCB inspection machine
,Clsoe Tube smt x ray machine
Microfocus 130KV close tube X-ray inspection machine for SMT BGA, CSP, LED, PCBA soldering quality inspection
Features of Unicomp AX9100:
● 90-130KV 7μm X-Ray tube.
● High speed & Millions pixels high resolution FPD.
● 1000X magnification, high-definition real-time image.
● One-button operation with 2.5D image display.
● Off-line programming function, navigation mode detection.
● 7 axis linkage, 70 degree tilt detection.
Applications of Unicomp AX9100:
● SMT, BGA, CSP, Flip Chip, LED Detection.
● Semiconductor, Packaging components, Battery Industry.
● Electronic components, Auto parts, Photovoltaic Industry.
● Aluminum Die-casting, Moulding Plastic.
● Ceramics, Other Special Industries.
| Item | Definition | Specs |
| System Parameters | Size | 1350(L)x1250(W)x1700(H)mm |
| Weight | 1900kg | |
| Power | 220AC/50Hz | |
| Power Consumption | 1.6kW | |
| X-ray Tube | Type | Closed |
| Max.Voltage | 130kV | |
| Max.Power | 40W | |
| Spot Size | 7μm | |
| X-ray System | Intensifier | FPD |
| Monitor | 22 ‘’LCD | |
| System Magnification | 1600 X | |
| Detection Region | Max.Loading Size | Φ570mm |
| Max.Inspection Area | 450mm x 450mm | |
| X-ray Leakage | <1μSv/h | |
Test Images of Unicomp AX9100:
Our Services
Help customer analyze product project and provide detection solution.
Freely sample detection test.
Provide professional detection solution.
Skilled jig design services.
Provide shipping/delivery information checking service.
One year guarantee, all life maintain promise.
24 hours feedback speed by email of others.
FAQ:
1. How about the package? Is it safe during the delivery?
All X-ray inspection machine is packed by standard strong wooden carton.It is safe when shipping.
2. Do you provide the Warranty? How about the after sales service?
1 year warranty free for spare parts, Whole life technicial support.
We have professional after sales team, if any question, assistant videos are also provided in after-sale service.
3. If we come to your factory, if you will provide the free training?
Yes, warmly welcome you to visit our factory, we will arrange the free training for you.
-
