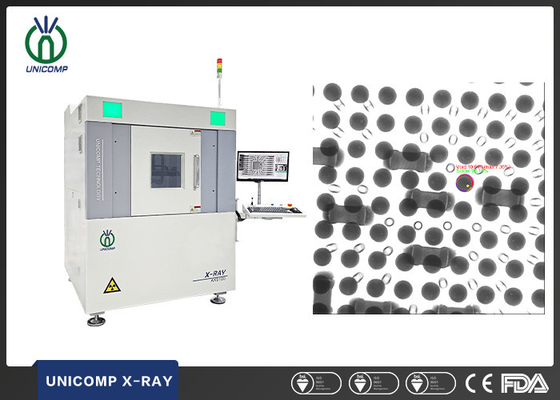

Unicomp AX9100 X Ray Inspection Equipment 130KV Closed Tube FPD Image For BGA PCBA

Unicomp AX9100 X Ray Inspection Equipment 130KV Closed Tube FPD Image For BGA PCBA
Unicomp AX9100 X Ray Inspection Equipment 130KV Closed Tube FPD Image For BGA PCBA

Large Image :  Unicomp AX9100 X Ray Inspection Equipment 130KV Closed Tube FPD Image For BGA PCBA

Product Details:
Place of Origin: China
Brand Name: Unicomp
Certification: CE, FDA
Model Number: AX9100
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: can negotiate
Packaging Details: Wooden Case, Waterproof, Anti-collision
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 300 sets per month
Detailed Product Description
Name: X Ray Pcb Inspection Machine Application: SMT, EMS,BGA, Electronics, CSP , LED, Semiconductor
Tube Voltage: 130KV Warranty: 1 Year
Industry: Electronics Industry Size: 1350(L)x1250(W)x1700(H)mm
X-ray Leakage: < 1uSv/h Weight: 1900kg
Power Consumption: 1.6kW
High Light:

FPD Image x ray inspection equipment

,

Closed Tube x ray inspection equipment

,

BGA PCBA Electronics X Ray Machine

Unicomp AX9100 130KV closed tube X-ray with FPD image detector for BGA,PCBA,Diode and semicon inspection





Technical Data



Item Definition Specs
System Parameters Size 1350(L)x1250(W)x1700(H)mm
Weight 1900kg
Power 220AC/50Hz
Power Consumption 1.6kW
X-ray Tube Type Closed
Max.Voltage 130kV
Max.Power 40W
Spot Size 7μm
X-ray System Intensifier FPD
Monitor 22 ‘’LCD
System Magnification 1600 X
Detection Region Max.Loading Size Φ570mm
Max.Inspection Area 450mm x 450mm
X-ray Leakage <1μSv/h





Features of ​Unicomp AX9100:


● 90-130KV 7μm X-Ray tube.
● High speed & Millions pixels high resolution FPD.
● 1000X magnification, high-definition real-time image.

● One-button operation with 2.5D image display.
● Off-line programming function, navigation mode detection.
● 7 axis linkage, 70 degree tilt detection.


Applications of ​Unicomp AX9100:


● SMT, BGA, CSP, Flip Chip, LED Detection.
● Semiconductor, Packaging components, Battery Industry.
● Electronic components, Auto parts, Photovoltaic Industry.
● Aluminum Die-casting, Moulding Plastic.
● Ceramics, Other Special Industries.

Our Services
Help customer analyze product project and provide detection solution.
Freely sample detection test.
Provide professional detection solution.
Skilled jig design services.
Provide shipping/delivery information checking service.
One year guarantee, all life maintain promise.
24 hours feedback speed by email of others.

FAQ:
1. How about the package? Is it safe during the delivery?
All X-ray inspection machine is packed by standard strong wooden carton.It is safe when shipping.

2. Do you provide the Warranty? How about the after sales service?
1 year warranty free for spare parts, Whole life technicial support.
We have professional after sales team, if any question, assistant videos are also provided in after-sale service.

3. If we come to your factory, if you will provide the free training?
Yes, warmly welcome you to visit our factory, we will arrange the free training for you.




Test Images of ​Unicomp AX9100:

Unicomp AX9100 X Ray Inspection Equipment 130KV Closed Tube FPD Image For BGA PCBA 0
