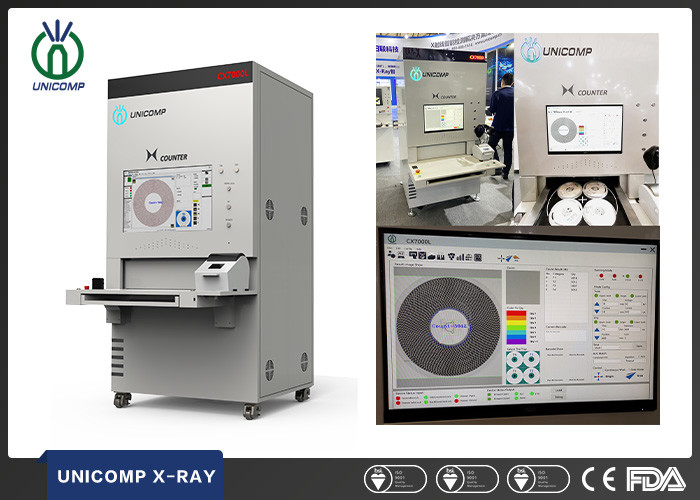

Component SMD X Ray Counter Machine CX7000L With Dynamic AI Counting Algorithm
Product Details
Off line X Ray Chip Counter
,Dynamic AI x ray counter machine
,Component SMD X Ray Chip Counter
Free Component library with dynamic AI Counting algorithm of SMD X-ray Chip Counter CX7000L
Main Configuration of Chip Counter CX7000L
1. Bar-code Scanner
2. X-ray System
3. Label Printer
4. Finger Printer Recognition System
Technical Data of CX7000L
| Equipment Features | Footprint (W*D*H) / Machine Weight | 1000 mm*1370 mm*1962 mm / 1160 kg |
| Package | Plywood Case, 110 cm*145 cm*210 cm, Total 1450 kg | |
| Power Consumption | 1.1kW | |
| Power Supply | AC 110~220V (±10%) 50Hz | |
| Working Mode | Off-line | |
| System Computer | Operating System | Industrial PC, Windows OS , i7 CPU |
| Monitor | 22” LCD | |
| X-Ray Tube | Max. Voltage | 80 kV |
| Max. Current | 700 μA | |
| Focal Spot Size | 0.03 mm | |
| Detector | FPD Detector Pixel Size | 139 μm |
| Effective Detection Area | 430*430 mm | |
| Pixel Matrix | 3072*3072 | |
| Frame Rates / AD Bits | 14 fps / 16 Bits | |
| Detection Parameters | Inspection Tape & Real Size | 7”~17” |
| Scan height | ≤88mm | |
| Maximum Inspection Speed | 7”~17” Tape & Real is less than 12s/Real, 7”*4 is less than 13s. | |
| Inspection Min. Component | 01005 | |
| Inspection Accuracy | ≥99.9% | |
| Detectable item | Capacitors, resistors, inductors, beads, crystals, transistors, diodes, FETs, various types of resistors, bile capacitors, detectable connectors, integrated circuit chips, etc. | |
| Accessories | Barcode Scanning, Printer, Fingerprint Recognition System |
|
Features of CX7000L
● Automatic inspection, no need on programs switch for different components
● Fast speed and high accurate chip counting, reducing labor costs
● No chip damage or lost with non-destructive counting
● Compatible with 7”~17” tape & reels
● Automatic link with ERP & MES System, and storage system
● Shielded cabinet protection to guarantee Safety leakage of X-ray
● Fast counting Speed:12~13s/Reel
● Inspection Accuracy: ≥99.9%
● Min. Package: 01005
● One-button operation, automatic counting
● Hand-operated label reading, new label printing and sticking
● Special advantage for incoming inspection and inventory management
● Real-time radiation leakage monitoring
Our Services
Help customer analyze product project and provide detection solution.
Freely sample detection test.
Provide professional detection solution.
Skilled jig design services.
Provide shipping/delivery information checking service.
One year guarantee, all life maintain promise.
24 hours feedback speed by email of others.
FAQ:
1. How about the package? Is it safe during the delivery?
All X-ray inspection machine is packed by standard strong wooden carton.It is safe when shipping.
2. Do you provide the Warranty? How about the after sales service?
1 year warranty free for spare parts, Whole life technicial support.
We have professional after sales team, if any question, assistant videos are also provided in after-sale service.
3. If we come to your factory, if you will provide the free training?
Yes, warmly welcome you to visit our factory, we will arrange the free training for you.
X-Ray Safety: All X-ray machines manufactured by Unicomp Technology meet the FDA-CDRH Regulation CFR 21 1020.40 Subchapter J for cabinet x-ray systems. The FDA - CDRH standard for cabinet x-ray systems states that radiation emission will not exceed. 5millirem a /hr.2"from any external surface. Our machines (Leakage <1μSv/h) are typically 5-10 times less than the international standards,
¢ Specifications are subject to change without notice, all trademarks are the property of the system maker.
-
