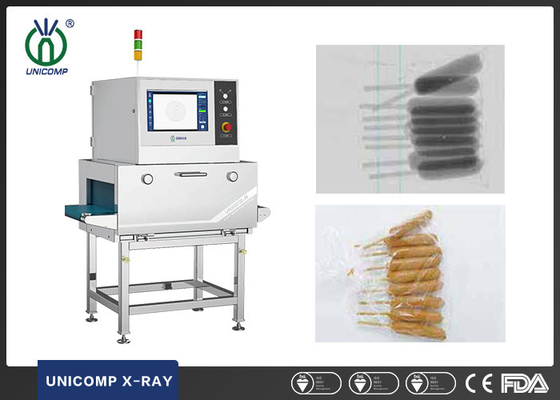

Foreign Objects Detection Food X Ray Inspection System For Meat Vegetable Poultry Dumplings

Basic Properties
Place of Origin: China
Brand Name: UNICOMP
Certification: CE, FDA
Model Number: UNX6030N
Trading Properties
Minimum Order Quantity: 1 set
Price: can negotiate
Payment Terms: L/C, T/T
Supply Ability: 100set/montrh
Tags

food x ray inspection equipment

x ray food inspection systems

food through x ray machine
Product Summary
Meat vegetable poultry dumplings Foreign Objects Detection X ray Inspection System Applications of UNX6030NUNX6030-N is used to detect foreign matter contaminants in small bags for lightweights products. Such as candy, fresh meat, prawn, vegetable, poultry, chocolates, candy, pasta, instant noodles, ...

Product Details

Highlight:

food X ray Inspection System 120kv

,

Dumplings food X ray Inspection System

,

Dumplings food x ray inspection machine
Machine Weight: 800kg
X-Ray Tube: 80-120kv/210-480W
Power Supply: AC 110/220V, 50/60Hz
Max. Loading Weight: 15kg
X-Ray Detector: Diode Array With 0.4mm Resolution
Conveyor Speed: 10-60M/min
Product Description

Meat vegetable poultry dumplings Foreign Objects Detection X ray Inspection System

Applications of UNX6030N

UNX6030-N is used to detect foreign matter contaminants in small bags for lightweights products. Such as candy, fresh meat, prawn, vegetable, poultry, chocolates, candy, pasta, instant noodles, bread, biscuits, dried fish, ham sausage, beef jerky, nuts, etc.



Features of UNX6030N

  • Easy to Operate: one button start & stop, optional default product

  • Provide High precision automatic foreign detection, It can effectively identify metal, ceramic,glass, bone, shell and other malignant foreign matter in the product

  • Sensitivity adjustment, alarm management, powerful data statistics report

  • The detection sensitivity reaches the industry's highest standard Intelligent algorithm based on in-depth learning of AI

  • Tool free for conveyor belt and protective curtains



Technical Specifications of UNX6030N

Equipment FeaturesDimension1500(W)X1300(D)X2050(H)mm
Machine weight800kg
X-ray tube80-120kv/210-480W
Power SupplyAC 110/220V, 50/60Hz
Max. Loading weight15kg
X-ray detectorDiode array with 0.4mm resolution
Channel size400mm(W)*150mm(H)
Conveyor Speed10-60M/min
Heavy load Conveyor Speed10-40M/min
Operating Range10°C to 40°C (50°F to 104°F),
30% to 90% relative humidity non-condensing
CapabilityDetection AccuracySUS BALL≥ø0.3mm
SUS wire≥ø0.2*2mm
Glass ball≥ø1.0mm
Ceramic ball≥ø1.0mm
System ComputerCommunications1*LAN,2*USB
Industrial PC17"LCD touch screen; Windows 10
Optional configurationRejectorSound-Light alarm,
flipper,dropout,air jet,
Pusher,chute,shuttle
OtherIngress protectionConveyor: IP66, Others: IP65
X-Ray Safety<1μSv/h



X-ray images

Foreign Objects Detection Food X Ray Inspection System For Meat Vegetable Poultry Dumplings 0



Dimensions and Appearance of UNX6030N

Foreign Objects Detection Food X Ray Inspection System For Meat Vegetable Poultry Dumplings 1
