EMS SMT PCB Electronics X Ray Machine BGA QFN LED Soldering Void NDT Inspection Equipment
Basic Properties
Place of Origin:
China
Brand Name:
Unicomp
Certification:
CE, FDA
Model Number:
AX8200MAX
Trading Properties
Minimum Order Quantity:
1 PCS
Price:
can negotiate
Payment Terms:
T/T, L/C
Supply Ability:
300 pcs per month
Product Summary
Unicomp EMS, SMT, PCB, Electronics, Semicon X Ray NDT Inspection Machine for BGA, QFN, LED Soldering Void, Wire bonding Widely applied for BGA, CSP, Flip Chip, LED, Fuse, Diode, PCB, Semiconductor, Battery Industry, Small Metal Casting, Electronic Connector Module, Cables, Aerospace Components, ...
Product Details
Highlight:
EMS PCB Electronics X Ray Machine
,EMS Electronics X Ray Machine
,QFN NDT inspection equipment
Tube Voltage:
0~90kV (Adjustable)
Tube Type:
Sealed
Focus Spot Size:
5μm
Detector:
Flat Panel Detector (FPD)
Packing Weight:
1520 Kg
Power Supply:
AC 110/220V, 50/60Hz
Power Consumption:
2.0 KW
X-Ray Safety:
<1μSv/h (Meets All International Standards)
Product Description

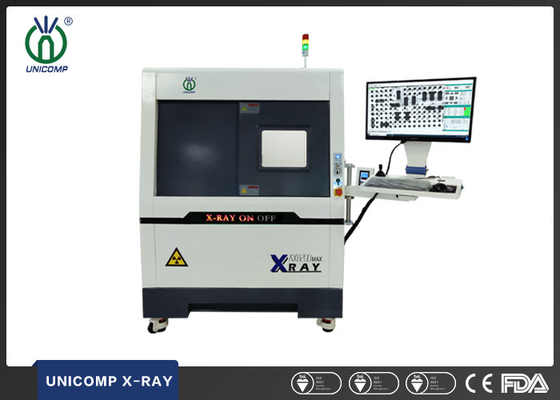

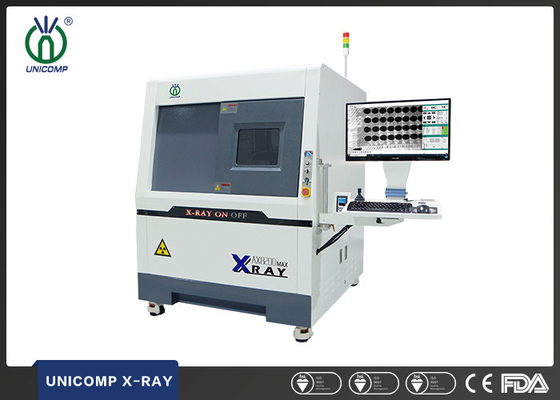

Unicomp EMS, SMT, PCB, Electronics, Semicon X Ray NDT Inspection Machine for BGA, QFN, LED Soldering Void, Wire bonding
Widely applied for BGA, CSP, Flip Chip, LED, Fuse, Diode, PCB, Semiconductor, Battery Industry, Small Metal Casting, Electronic Connector Module, Cables, Aerospace Components, Photovoltaic Industry, etc.
Application Fields of X Ray Machine AX8200Max
|
|
|
|
|
| SMT/PCBA Inspection |
Semiconductor Inspection |
Lithium Batteries Inspection |
LED Inspection | Photovoltaic Inspection |
Functions and Features
Technical Parameters and Specifications of X Ray Machine AX8200Max
| System Summary | |
| Footprint | 1280(W)×1500(D)×1700(H)mm |
| Machine Weight | 1370 kg |
| Power Supply | AC 110/220V, 50/60Hz |
| Plywood Packing Size | 1750(W)×1920(D)×2000(H)mm |
| Packing Weight | 1520 kg |
| Power Consumption | 2.0 kW |
| X-Ray Tube | |
| Tube Type | Sealed |
| Max. Power | 8W |
| Voltage | 0~90kV (Adjustable) |
| Focus Spot Size | 5μm |
| Imaging System | |
| Detector | Flat Panel Detector (FPD) |
| Pixel Size | 85μm |
| Effective Detection Area | 130*130mm |
| Frame Rates | 20fps |
| Pixel Matrix | 1536*1536 |
| System Magnification | 600X |
| Software | |
| Auto-measuring | BGA Soldering Voids Auto-measuring and Support Data/Graphic Output |
| Multiple Measuring Tools | Support Measuring Distance, Angle, Diameter, Polygon, PTH filling rate, etc. |
| CNC Mode | CNC Programmable Inspection, Easy Operation and User Friendly |
| Real-time Display | Real-time Displaying the Working Data of Voltage, Current, Angle, Date, etc |
| Navigation | Convenient Target Point Positioning System |
| Motion Control System | |
| Movement Control | Joystick, Keypad, Mouse &Touch Panel |
| Max. Loading Area/Weight | 610*610mm / 10kg |
| Max. Inspection Area | 550*550mm |
| Oblique Views | Max. 60° |
| Manipulator | 6-axis with X / Y / Z1 / Z2 / T1 / T2 |
| Industrial PC | |
| Monitor | 24’’ FHD Interactive Touch LCD Display |
| System OS | Windows 10 64bit |
| Hard disk | 1TB |
| RAM | 8GB |
| CPU model | Intel i7 Processor |
| Other Features | |
| Door Open | Electric Sliding |
| X-Ray Safety | <1μSv/h (Meets All International Standards) |
| Authority Management | Fingerprint Access Magnagement System, and Support Password Accessing. |
| Safety Operation | Electromagnetic Interlock, Warning Light and Real-time Radioation Leakage Monitor |
* Specifications are subject to change without notice, All trademarks are the property of the system maker.
