| Name: | X-ray Inspection Machine | Application: | Aluminum Casting, Iron Casting, Auto Parts, Wheels, Metal Products, Refractory Materials |
|---|---|---|---|
| Tube Voltage: | 450KV (160KV, 225KV, 320KV For Option) | X-ray Leakage: | < 2.5uSv/h |
| Weight: | 17.5 T | Power Consumption: | 10 KW |
| Highlight: | Cold Flow NDT X Ray Equipment,450KV NDT X Ray Equipment,Hot Tears X Ray Inspection Equipment |
||
Casting defects heat sinks, hot tears, cold-flow, drag-marks, missing material and cracks NDT X-Ray Inspection

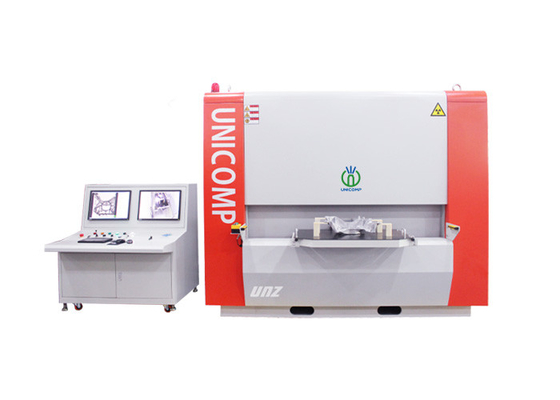

Application Fields of X Ray Machine UNZ-450
● Engineering components
● Small aluminum castings, iron castings
● Auto parts, metal products
Technical Parameters and Specifications of X Ray Machine UNZ-450
| System Parameters | |
| Dimensions | 2766mm*2813mm*2598mm(L*W*H) |
| Equipment weight | 17.5T |
| Power | 10 kW |
| Maximum penetration (FE) | 80 mm |
| Detection range | Φ550*200mm |
| Load weight | 30kg |
| Work environment | 5-40° ≤80%HR |
| Power supply | Three-phase five wire system AC380V |
| X-ray leakage dose rate | ≤2.5μSv/h |
| X-ray Generator | |
| Tube voltage | 450KV (160KV, 225KV, 320KV for option) |
| Power | 700W / 1500W |
| Focal size | 0.5mm |
| Detector (FPD) | |
| Image area | 250mm×300mm |
| Pixel matrix | 1792×2176 |
| Pixel pitch | 139μm |
| Frame rate | 9fps(1×1) 30 fps(2×2) |
| Software Function | |
| Image processing | brightness and contrast adjustment; stacking frames, window width and level adjustment; image enhancement, filtering, sharpening, invert, relief and bubble measure;ove, zoom in, zoom out, display image scaling, display the current mouse coordinates and gray values |
| Image measurement | distance, radius, polygon, angle measurement; arrows and text labels; save the image after processing |
| Motion control | the speed adjustment of each moving axis; CNC programming; manual operation; |
| Additional function | |
| ● CNC programmable control, to save the detection time of the bulk of the workpiece | |
| ● C type arm five detection mechanism, no dead angle detection | |
| ● Servo stepper motor drive, stable operation | |
| ● Voltage regulator, isolation, filtering, grounding and other protective functions are complete | |
| ● Set aside industrial cloud interface, data and pictures in real time upload, with traceability and large data analysis(optional) | |
