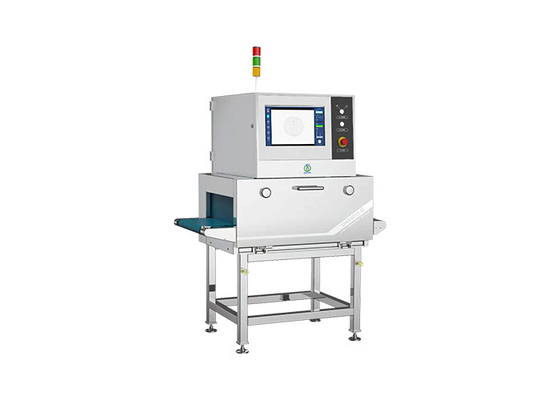

UNX4015N Unicomp X Ray Machine Foreign Material Iron Stone Glass For Food Beverage Industry
Basic Properties
Place of Origin:
China
Brand Name:
UNICOMP
Certification:
CE, FDA
Model Number:
UNX4015N
Trading Properties
Minimum Order Quantity:
1 set
Price:
can negotiate
Payment Terms:
L/C, T/T
Supply Ability:
100set/montrh
Product Summary
Unicomp Foreign Material Iron, Stone, Glass X-Ray Inspection Machine UNX4015N for Food, Beverage Industry Applications of Food Xray UNX4015N UNX4015-N is used to detect foreign matter contaminants in small bags for lightweights products. Such as candy, fresh meat, prawn, vegetable, poultry, ...
Product Details
Highlight:
food industry Unicomp X Ray Machine
,Beverage Industry Unicomp X Ray Machine
,120kv x ray machine for food industry
Machine Weight:
500kg
X-Ray Source:
80-120kv/210-350W
Power Supply:
AC 110/220V, 50/60Hz
Max. Loading Weight:
10kg
Conveyor Speed:
10-120M/min
X-Ray Safety:
<1μSv/h
Product Description
Unicomp Foreign Material Iron, Stone, Glass X-Ray Inspection Machine UNX4015N for Food, Beverage Industry
Applications of Food Xray UNX4015N
UNX4015-N is used to detect foreign matter contaminants in small bags for lightweights products. Such as candy, fresh meat, prawn, vegetable, poultry, chocolates, candy, pasta, instant noodles, bread, biscuits, dried fish, ham sausage, beef jerky, nuts, etc.
Features of Food Xray UNX4015N
● Easy to Operate: one button start&stop, the optional default product
● Provide High precision automatic foreign detection, It can effectively identify metal, ceramic, glass, bone, shell, and other malignant foreign matter in the product
● Sensitivity adjustment, alarm management, powerful data statistics report
● The detection sensitivity reaches the industry's highest standard Intelligent algorithm based on in-depth learning of AI
Technical Specifications of Food Xray UNX4015N
| Technical Parameters and specifications | |||
| Equipment Features | Dimension | 1168(W)X985(D)X1510(H)mm | |
| Power Supply | AC 110/220V, 50/60Hz | ||
| Machine weight | 500kg | ||
| X-Ray source | 80-120kv/210-350W | ||
| Detector | 0.4mm high-resolution detector | ||
| Channel size | 400mm(W)*150mm(H) | ||
| Conveyor Speed | 10-120M/min | ||
| Max. Loading Weight | 10kg | ||
| Operating Range | 10°C to 40°C (50°F to 104°F),30% to 90% relative humidity non-condensing | ||
| Capability | Detection Accuracy | SUS BALL≥ø0.3mm | |
| SUS wire≥ø0.2*2mm | |||
| Glass ball≥ø1.0mm | |||
| Ceramic ball≥ø1.0mm | |||
| Other | Ingress protection | Conveyor: IP66, Others: IP65 | |
| X-Ray Safety | <1μSv/h | ||
X-ray images
Dimensions and Appearance of Food Xray UNX4015N
