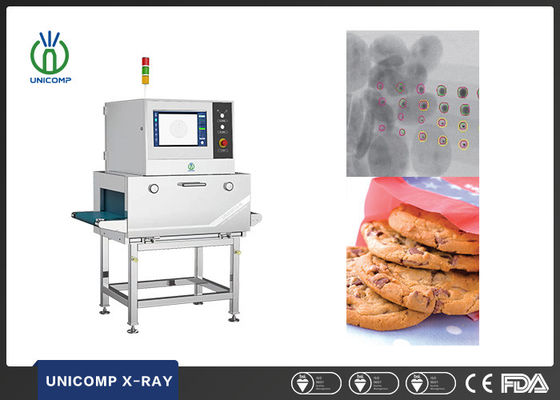

UNX4015N Food X Ray Machine Auto Sorting For Food Foreign Matters Contamination Checking
Product Details
120kv x ray machine for food
,1uSv/h food x ray machine
,Matter food x ray inspection machine
UNX4015N X Ray for food Foreign Matters contamination Checking with auto sorting
Applications of Food Xray UNX4015N
UNX4015-N is used to detect foreign matter contaminants in small bags for lightweights products. Such as candy, fresh meat, prawn, vegetable, poultry, chocolates, candy, pasta, instant noodles, bread, biscuits, dried fish, ham sausage, beef jerky, nuts, etc.
Features of Food Xray UNX4015N
● Easy to Operate: one button start&stop, the optional default product
● Provide High precision automatic foreign detection, It can effectively identify metal, ceramic, glass, bone, shell, and other malignant foreign matter in the product
● Sensitivity adjustment, alarm management, powerful data statistics report
● The detection sensitivity reaches the industry's highest standard Intelligent algorithm based on in-depth learning of AI
Technical Specifications of Food Xray UNX4015N
| Technical Parameters and specifications | |||
| Equipment Features | Dimension | 1168(W)X985(D)X1510(H)mm | |
| Power Supply | AC 110/220V, 50/60Hz | ||
| Machine weight | 500kg | ||
| X-Ray source | 80-120kv/210-350W | ||
| Detector | 0.4mm high-resolution detector | ||
| Channel size | 400mm(W)*150mm(H) | ||
| Conveyor Speed | 10-120M/min | ||
| Max. Loading Weight | 10kg | ||
| Operating Range | 10°C to 40°C (50°F to 104°F),30% to 90% relative humidity non-condensing | ||
| Capability | Detection Accuracy | SUS BALL≥ø0.3mm | |
| SUS wire≥ø0.2*2mm | |||
| Glass ball≥ø1.0mm | |||
| Ceramic ball≥ø1.0mm | |||
| Other | Ingress protection | Conveyor: IP66, Others: IP65 | |
| X-Ray Safety | <1μSv/h | ||
X-ray images
Dimensions and Appearance of Food Xray UNX4015N
Our Services
Help customers analyze product projects and provide detection solutions.
Freely sample detection test.
Provide professional detection solutions.
We have skilled jig design services.
Provide shipping/delivery information checking service.
One year guarantee, all life maintain promise.
24 hours feedback speed by email of others.
FAQ:
1. How about the package? Is it safe during the delivery?
All X-ray inspection machine is packed with standard wooden solid carton. It is safe when shipping.
2. Do you provide the Warranty? How about the after-sales service?
1-year warranty free for spare parts, Whole life technical support.
We have a professional after-sales team, if any questions, assistant videos are also provided in the after-sale service.
3. If we come to your factory if you will provide free training?
Yes, we warmly welcome you to visit our factory, we will arrange the free training for you.
-
