Product Details:
Payment & Shipping Terms:
|

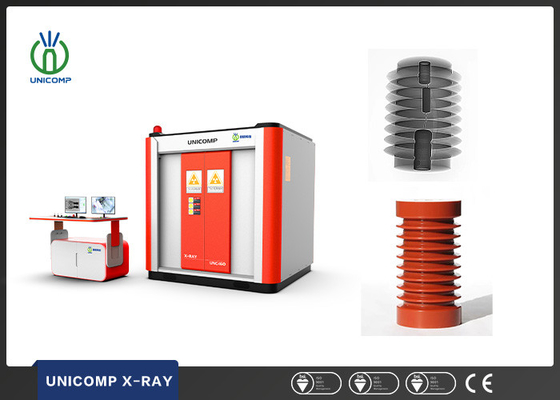

| Name: | X-ray Inspection Machine | Application: | Aluminum Casting, Iron Casting, Auto Parts, Wheels, Metal Products, Refractory Materials |
|---|---|---|---|
| Tube Voltage: | 160KV | Industry: | Industry Nondestructive Testing |
| Size: | 2100(L)x1720(W)x2470(H)mm | X-ray Leakage: | < 1uSv/h |
| Weight: | 3.5T | Power Consumption: | 6kW |
| High Light: | drag marks NDT Radiography Equipment,Crack Porosity ndt radiography equipment,Digital Unicomp X ray machine |
||
| System Parameters | Dimensions | 2100mm*1549mm*2468mm(L*W*H) |
| Equipment weight | 3.5T | |
| Power | 6KW | |
| Maximum penetration(AL/FE) | 100mm/20mm | |
| Detection range | Φ500*800mm | |
| Load weight | 50kg | |
| Work environment | 5-40° ≤80%HR | |
| Install power | Three-phase five-wire system AC380V | |
| X-ray leakage dose rate | ≤1uSv/h | |
| X-ray Generator | Tube voltage | 160kV |
| Power | 480W | |
| Focal size | 0.5mm | |
| Detector | Image area | 145mm x 145mm |
| Resolution | 3.0LP/mm | |
| Detector ( Selection FPD ) | Image area | 17’’x17’’ |
| Pixel matrix | 3072mm*3072mm | |
| Pixel size | 139μm | |
| Frame rate | 9fps(1x1)30fps(2x2) | |
| Software Functions | Image processing | Brightness and contrast adjustment; stacking frames; window width and level adjustment; image enhancement, filtering, sharpening, invert, relief, and bubble measure; move, zoom in, zoom out; display image scaling; display the current mouse pointer image coordinate and the gray value |
| Image measurement | Distance, radius, polygon, angle measurement; arrows and text labels; save the processed image; | |
| Motion control | Speed adjustment of each moving axis; CNC programming; manual operation | |
| Additional Function | Save the detection time of the bulk of the workpiece via the CNC programmable control | |
| No dead angle detection with C-arm five-axis motion detection mechanism | ||
| Servo stepper motor drive to make the operation stability | ||
| Voltage regulator, isolation, filtering, grounding, and other protective functions are complete | ||
| Set aside industrial cloud interface, data, and pictures in real-time upload, with traceability and large data analysis function (optional) | ||
Applications:
● Cast parts and Pressure Vessels
● Steel pipe, Cylinder, and Wood
● Epoxy Resin Defect Detection
● Wheel, Tires, and Metal parts
Features:
● Strong penetration, high reliability, low breakdown, long life;
● High definition, resolution FPD;
● Multi-functional workstation,360°rotation, and shift;
● High automation, fast detection speed;
● User-friendly software design for interfacing and facilitating, customizing software function development requirements.
Inspection Images:
FAQ:
1. How about the package? Is it safe during the delivery?
All X-ray inspection machine is packed with standard wooden solid carton. It is safe when shipping.
2. Do you provide the Warranty? How about the after-sales service?
1-year warranty free for spare parts, Whole life technical support.
We have a professional after-sales team, if any questions, assistant videos are also provided in the after-sale service.
3. If we come to your factory if you will provide free training?
Yes, we warmly welcome you to visit our factory, we will arrange the free training for you.
Our Services
Help customers analyze product projects and provide detection solutions.
Freely sample detection test.
Provide professional detection solutions.
We have skilled jig design services.
Provide shipping/delivery information checking service.
One year guarantee, all life maintain promise.
24 hours feedback speed by email of others.
