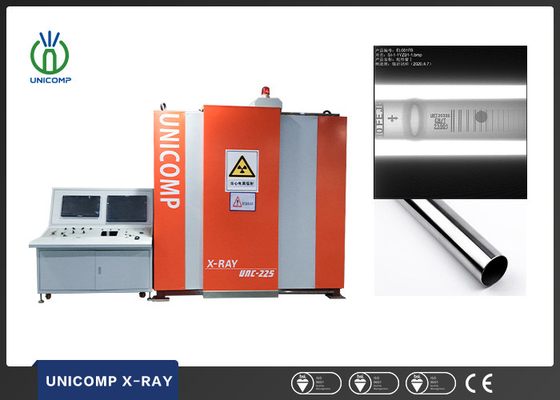

ADR ASTM Standard NDT X Ray Equipment Unicomp UNC225 For Weld Seams Quality Control
Product Details
FPD NDT X Ray Equipment
,225kV NDT X Ray Equipment
,ASTM x ray test for welding
Welded Pipes X-Ray inspection machine Unicomp UNC225 for weld seams quality control with ADR and ASTM standard
Non Destructive Testing (NDT) is an important part of industrial quality management. Much Digital Radiography (DR) standards like the EN-17636 or NADCAP demand high accuracy and reliable archiving of test results. Unicomp has years long experience with many different applications and industries. As requirements vary between industries and even companies all systems can be easily customized and adapted.
●High reliable and long life, low breakdown
●High definition and resolution FPD
●C-arm fixture design enabling five-axis motion detection(optional automatic lift and descend)
●Multi-functional workstation,360°rotation, and shift
● User-friendly software design for easy interfacing can facilitate, customized software
●High penetration, Voltage up to 450KV, Maximum penetration thickness up to 80mm for "Fe"
●Detection area:Φ500*800mm
●Loading weight:100KG
UNC225 assists you in the detection of casting flaws in items such as:
1. Aluminum castings (engine blocks, cylinders, cylinder heads, pistons, knuckles)
2. Turbine blades
3. Wheels and tires
4. Fiber-reinforced materials
5. Ceramics
6. 3D printed materials
Technical Data
| Attribute | Respective Value |
| Maximum penetration(FE) | 150mm/25mm |
| Equipment weight | 5T |
| System Dimension | 2230mm*1582mm*2478mm(L*W*H) |
| X-ray Tube | 225KV |
| Power | 640W/1600W |
| Pixel Pitch | 139μm |
| Focal size | 1.0mm/3.0mm |
| Image Area | 250mm x 300mm |
Our Services
Help customers analyze product projects and provide detection solutions.
Freely sample detection test.
Provide professional detection solutions.
We have skilled jig design services.
Provide shipping/delivery information checking service.
One year guarantee, all life maintain promise.
24 hours feedback speed by email of others.
FAQ:
1. How about the package? Is it safe during the delivery?
All X-ray inspection machine is packed with standard wooden solid carton. It is safe when shipping.
2. Do you provide the Warranty? How about the after-sales service?
1-year warranty free for spare parts, Whole life technical support.
We have a professional after-sales team, if any questions, assistant videos are also provided in the after-sale service.
3. If we come to your factory if you will provide free training?
Yes, we warmly welcome you to visit our factory, we will arrange the free training for you.
-
MThe machine is excellent, the service is satisfactory, and the technology is highly professional.
-
JNICE
-
Pgood product
-
