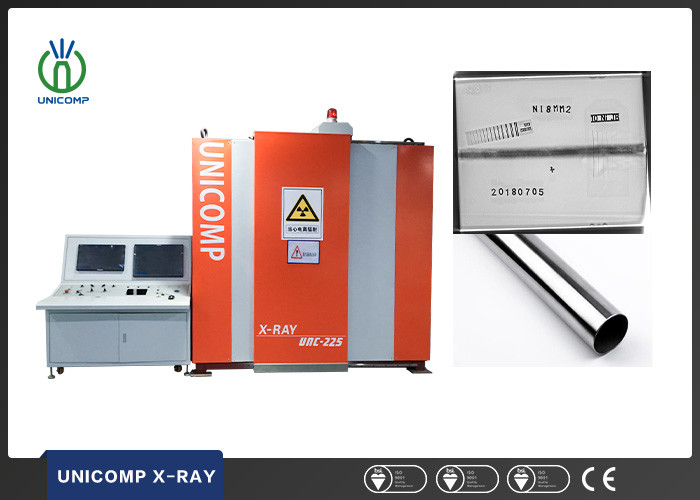

5 Axis CNC 2D Automatic X Ray Machine Unicomp UNC225 Radiography Pipe Inspection

5 Axis CNC 2D Automatic X Ray Machine Unicomp UNC225 Radiography Pipe Inspection
5 Axis CNC 2D Automatic X Ray Machine Unicomp UNC225 Radiography Pipe Inspection

Large Image :  5 Axis CNC 2D Automatic X Ray Machine Unicomp UNC225 Radiography Pipe Inspection

Product Details:
Place of Origin: China
Brand Name: UNICOMP
Certification: CE
Model Number: UNC225
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Can Negotiate
Packaging Details: Wooden Case, Waterproof, Anti-collision
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 10 sets per month
Detailed Product Description
Application: All Kinds Of Metal Castings Tube Voltage: 225kV
Focal Size: 1.0mm/3.0mm Dimension: 2230mm*1582mm*2478mm(L*W*H)
Detection Range: Φ500*800mm Origin: China
High Light:

CNC 2D automatic X Ray machine

,

5 Axis automatic X Ray machine

,

NDT radiography pipe inspection

5 Axis automatic CNC 2D X-Ray machine Unicomp UNC225 Radiography system for pipes welded seams quality testing



Technical Dat

Attribute Respective Value
Maximum penetration(FE) 150mm/25mm
Equipment weight 5T
System Dimension 2230mm*1582mm*2478mm(L*W*H)
X-ray Tube 225KV
Power 640W/1600W
Pixel Pitch 139μm
Focal size 1.0mm/3.0mm
Image Area 250mm x 300mm

























Non Destructive Testing (NDT) is an important part of industrial quality management. Much Digital Radiography (DR) standards like the EN-17636 or NADCAP demand high accuracy and reliable archiving of test results. Unicomp has years long experience with many different applications and industries. As requirements vary between industries and even companies all systems can be easily customized and adapted.





●High reliable and long life, low breakdown


●High definition and resolution FPD


●C-arm fixture design enabling five-axis motion detection(optional automatic lift and descend)


●Multi-functional workstation,360°rotation, and shift


● User-friendly software design for easy interfacing can facilitate, customized software


●High penetration, Voltage up to 450KV, Maximum penetration thickness up to 80mm for "Fe"


●Detection area:Φ500*800mm


●Loading weight:100KG







UNC225 assists you in the detection of casting flaws in items such as:



1. Aluminum castings (engine blocks, cylinders, cylinder heads, pistons, knuckles)



2. Turbine blades



3. Wheels and tires



4. Fiber-reinforced materials



5. Ceramics



6. 3D printed materials




5 Axis CNC 2D Automatic X Ray Machine Unicomp UNC225 Radiography Pipe Inspection 0



Our Services

Help customers analyze product projects and provide detection solutions.

Freely sample detection test.

Provide professional detection solutions.

We have skilled jig design services.

Provide shipping/delivery information checking service.

One year guarantee, all life maintain promise.

24 hours feedback speed by email of others.



FAQ:

1. How about the package? Is it safe during the delivery?

All X-ray inspection machine is packed with standard wooden solid carton. It is safe when shipping.



2. Do you provide the Warranty? How about the after-sales service?

1-year warranty free for spare parts, Whole life technical support.

We have a professional after-sales team, if any questions, assistant videos are also provided in the after-sale service.



3. If we come to your factory if you will provide free training?

Yes, we warmly welcome you to visit our factory, we will arrange the free training for you.
