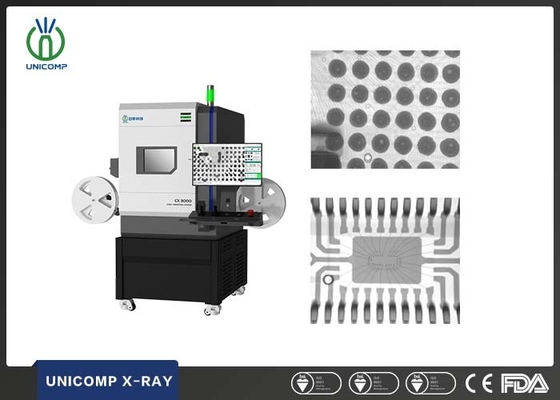

Unicomp CX3000 Desktop Electronics X Ray Machine With Reel To Reel JEDEC Tray And Tube

Unicomp CX3000 Desktop Electronics X Ray Machine With Reel To Reel JEDEC Tray And Tube
Unicomp CX3000 Desktop Electronics X Ray Machine With Reel To Reel JEDEC Tray And Tube

Large Image :  Unicomp CX3000 Desktop Electronics X Ray Machine With Reel To Reel JEDEC Tray And Tube

Product Details:
Place of Origin: China Guangdong
Brand Name: Unicomp
Certification: CE, FDA
Model Number: CX3000
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: can negotiate
Packaging Details: Wooden Case, Waterproof, Anti-collision
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 30 sets per month
Detailed Product Description
Name: Electronics X Ray Machine Application: SMT, EMS,BGA, Electronics, CSP , LED , Flip Chip , Semiconductor
X-ray Coverage: 48mm X 54mm X-ray Leakage: < 1uSv/h
Weight: 300kg Power Consumption: 0.5kW
High Light:

SMT CSP Electronics X Ray Machine

,

EMS BGA Electronics X Ray Machine

,

FPD desktop x ray machine

Electronics components couterfeit inspection with Unicomp desktop X-ray CX3000 with reel to reel, JEDEC tray and Tube





Specification Of Desktop X-Ray machine

Item Definition Specs
System Parameters Size 750(L)x570(W)x890(H)mm
Weight 300kg
Power 220AC/50Hz
Power Consumption 0.5kW
X-ray Tube Type Closed
Max.Voltage 100kV
Max.Power 200μA
Spot Size 5μm
Detector Intensifier FPD
X-ray Coverage 48mm x 54mm
Resolution 208Lp/cm
Work Station Max.Loading Size 200mm x 200mm
Max.Inspection Area 200mm x 200mm
Oblique Angle Views 360° rotary fixture (Optional)
X-ray Leakage <1μSv/h





Application of SMT X-Ray machine

BGA, CSP, LED, Flip Chip, Semiconductor, Battery Industry, Small Metal Casting, Electronic Connector Module, Aerospace Components, Photovoltaic Industry, Other Special Industries.



FEATURES of Desktop X-ray machine



1. 5μm 100kV X-ray tube;

2. Dynamic FPD with high resolution of 1000×1124;

3. Equipped with 360° rotary fixture to eliminate PoP shadow;

4. The detection area is easily positioned by an external rocker;

5. Inspection & Analysis of soldering joint and materials inner structure;

6. High safety with seamless lead welding, interlock, and emergency button.



Description Of SMT X-Ray machine

X-ray inspection is a non-destructive testing method that examines many types of manufactured components through the penetrating power of X-rays to verify internal structures.

This X-ray is designed to provide high-resolution X-ray imaging for the electronics industry. This versatile system is effective for many applications in the PCB manufacturing process. This includes BGA, CSP, QFN, flip chip, COB and various SMT components. is a powerful support tool for process development, process monitoring, and refinement of rework operations. Backed by a powerful and easy-to-use software interface, x ray is able to meet the needs of small and large factories.



Our Services

Help customers analyze product projects and provide detection solutions.

Freely sample detection test.

Provide professional detection solutions.

We have skilled jig design services.

Provide shipping/delivery information checking service.

One year guarantee, all life maintain promise.

24 hours feedback speed by email of others.



FAQ:

1. How about the package? Is it safe during the delivery?

All X-ray inspection machine is packed with standard wooden solid carton. It is safe when shipping.



2. Do you provide the Warranty? How about the after-sales service?

1-year warranty free for spare parts, Whole life technical support.

We have a professional after-sales team, if any questions, assistant videos are also provided in the after-sale service.



3. If we come to your factory if you will provide free training?

Yes, we warmly welcome you to visit our factory, we will arrange the free training for you.
