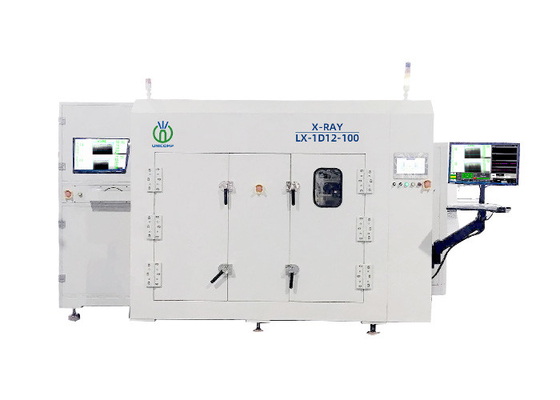

Micro Focal X Ray Inspection Machine 12PPM Max For EV / Cylindrical / Pouch / Polymer Battery
Product Details
FPD Battery X Ray Inspection Machine
,110kV X Ray Inspection Machine
,FPD Battery X Ray Machine
Electric Vehicle Laminated & Stacked Battery, Cylindrical Battery Pouch Lithium Cells, Polymer Battery X-Ray Inspection
Features of EV Battery Xray machine:
- Micro focal X-Ray Tube enables high-resolution images
- Inspection of batteries in various sizes
- Easy to set, qualified/NG products auto-sorting
- Easy to operate software
- Full automation for high efficiency and consistently high quality
- Auto-identification software ensures high quality
- Handy control and data analysis with built-in SPC
- Safety-oriented design
- Fashion appearance
Technical Specifications of Battery X-Ray Machine:
| System Parameters | Dimension(L×W×H) | 3540mmX3100mmX1950mm |
| Weight | 6.0t | |
| Working Environment | 0～40℃ | |
| Power Consumption | 10KW | |
| Accuracy | ±60μm | |
| Operating Mode | In-line | |
| X-ray Tube | Type | Closed |
| Max.Voltage | 110kv | |
| Max.Current | 0.8mA | |
| Focal Spot Size | 15μm | |
| Quantity | 2 | |
| Image Detector | Type | Flat Panel Detector (FPD) |
| System Magnification | 600X | |
| Pixel Matrix | 1536*1536 | |
| Pixel Size | 85μm | |
| Applied to | EV Laminated Power Battery | |
| Max.Capacity | 12ppm | |
| Operation Ratio | ≥95% | |
| Applicable Size |
Cell hight:190-290 Cell width:140-180 Cell thickness:4-10mm Carrier Size:customized |
|
| Items | Alignment Metric | |
| Customer Cases | CATL / BYD / Panasonic / DLG / MGL | |
| Equipment Features |
● Applicable to in-line X-ray detection for Laminated Power Lithium Battery; ● Auto-shift three inspection modes, automatic docking with production lines, unattended operation; ● Precision positioning and rotating mechanism, adjustable detection angle ensures high-definition image; ● Unicomp-owned R&D of in-line lithium battery inspection software system |
|

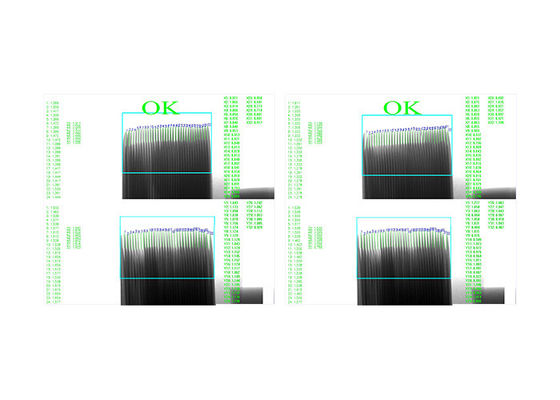

X-ray images of Battery:
