Unicomp 90kV 5um Microfocus X Ray Tube For EMS SMT PCBA BGA QFN X Ray Machine
Basic Properties
Place of Origin:
China
Brand Name:
Unicomp
Certification:
CE
Model Number:
UNMS-U90D
Trading Properties
Minimum Order Quantity:
1set
Price:
Can be negotiated
Payment Terms:
T/T, L/C
Supply Ability:
100 Per Month
Product Summary
Unicomp 90kV 5um Microfocus X Ray Tube For EMS SMT PCBA BGA QFN X Ray Machine UNMS-U90D is an integrated small volume closed tube 90kV Microfocus X-Ray Source with hot cathodetechnology, small focal spot size, high magnification and stable X-Ray emission. It can penetrate electronic components, PCBs...
Product Details
Highlight:
5um Microfocus X Ray Tube
,90kV Microfocus X Ray Tube
,Unicomp Microfocus X Ray Source
Product Description

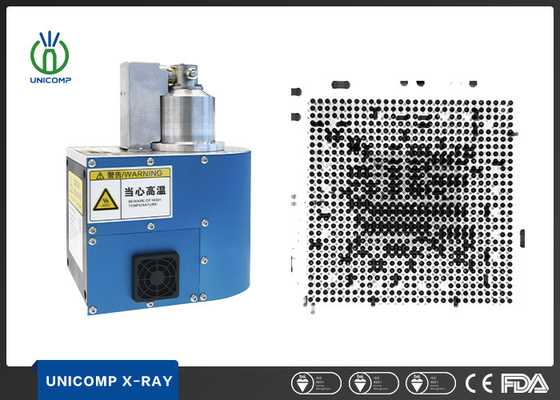

Unicomp 90kV 5um Microfocus X Ray Tube For EMS SMT PCBA BGA QFN X Ray Machine
UNMS-U90D is an integrated small volume closed tube 90kV Microfocus X-Ray Source with hot cathodetechnology, small focal spot size, high magnification and stable X-Ray emission. It can penetrate electronic components, PCBs, assembly circuit boards, battery cells, etc. and obtain clear and high-quality internal structure images.
Key Parameter
-
Max. Tube Voltage: 90kV
-
Max. Tube Power: 8W
-
Min. Spot Size: <5μm @ 4W
-
Beam Angle: 45°
Applications
-
PCB and semiconductor device
-
SMT, PCBA electronic manufacturing
-
Wire harness and connector
-
3C consumer battery
Specifications
| Operating Tube Voltage Range | 0-90kV |
| Operating Tube Current Range | 0-180μA |
| Maximum Tube Power | 8W |
| Input Voltage(DC) | +24±0.5V |
| Power Consumption | Less than 30W |
| Focal Spot Size | 7μm(5μm@4W) |
| Window Material/Thickness | Be/0.1mm |
| Window Diameter | 8mm |
| Beam Angle | 45° |
| Target Material | W |
| FOD | 10.2±0.2mm |
| Weight | Approx. 3.5kg |
| Safty Interlock | External Short-circuit |
| Control Connection | Analog control |
| Operating Mode | Continuous |
| Operating Ambient Temperature | 10-40℃ |
| Storage Ambient Temperature | 0-50℃ |
| Operating and Storage Humidity | 10-80% |
