Quality 80kv Unicomp X Ray Machine Foreign Matter Detection Machine For Metal Stone Glasses factory

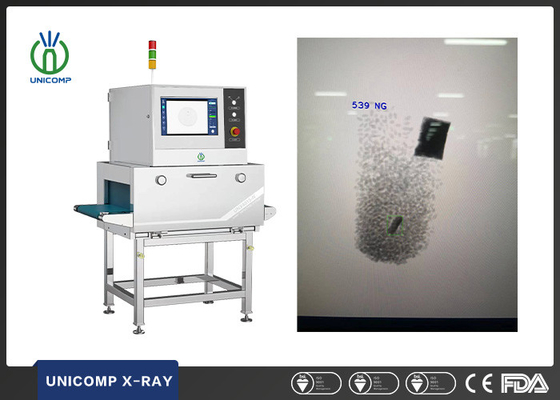

80kv Unicomp X Ray Machine Foreign Matter Detection Machine For Metal Stone Glasses

Name: 80kv Unicomp X Ray Machine Foreign Matter Detection Machine For Metal Stone Glasses
Brand: Unicomp Technology
SKU: UNX4015N
Price: 45,000.00 USD
Availability: InStock

Basic Properties

Place of Origin: China

Brand Name: Unicomp

Certification: CE

Model Number: UNX4015N

Trading Properties

Minimum Order Quantity: 1 PCS

Price: USD

Payment Terms: T/T, L/C

Supply Ability: 100 pcs per month

food x ray inspection equipment

80kv Unicomp x-ray small pack foreign matter detection machine for metal stone glasses and other materials detection Application UNX4015-N is used to detect foreign matter contaminants in small bags for lightweights products. Such as candy, fresh meat, prawn, vegetable, poultry, chocolates, candy, ...

Product Details

Highlight:

80kv Unicomp X Ray Machine

,

Unicomp X Ray Machine For Metal

,

Unicomp X Ray Machine For Stone

Machine Weight: 500kg

X-Ray Tube: 80-120kv/210-480W

Power Supply: AC 110/220V, 50/60Hz

Max. Loading Weight: 10kg

X-Ray Detector: Diode Array With 0.4mm Resolution

Conveyor Speed: 10-60M/min

Heavy Load Conveyor Speed: 10-40M/min

Product Description

80kv Unicomp x-ray small pack foreign matter detection machine for metal stone glasses and other materials detection

Application

UNX4015-N is used to detect foreign matter contaminants in small bags for lightweights products. Such as candy, fresh meat, prawn, vegetable, poultry, chocolates, candy, pasta, instant noodles, bread, biscuits, dried fish, ham sausage, beef jerky, nuts, etc.

X-ray images

Specificaitions

Equipment Features	Dimension	1168(W)X985(D)X1510(H)mm
	Machine weight	500kg
	X-ray tube	80-120kv/210-480W
	Power Supply	AC 110/220V, 50/60Hz
	Max. Loading weight	10kg
	X-ray detector	Diode array with 0.4mm resolution
	Channel size	400mm(W)*150mm(H)
	Conveyor Speed	10-60M/min
	Heavy load Conveyor Speed	10-40M/min
	Operating Range	10°C to 40°C (50°F to 104°F),30% to 90% relative humidity non-condensing
Capability	Detection Accuracy	SUS BALL≥ø0.3mm
		SUS wire≥ø0.2*2mm
		Glass ball≥ø1.0mm
		Ceramic ball≥ø1.0mm
System Computer	Communications	1LAN,2USB
System Computer	Industrial PC	17"LCD touch screen； Windows 10
Optional configuration	Rejector	Sound-Light alarm, flipper, dropout,air jet, Pusher, chute,shuttle
Other	Ingress protection	Conveyor: IP66, Others: IP65
	Ingress protection	Conveyor: IP66, Others: IP65
	X-Ray Safety	<1μSv/h

Features

Easy to Operate: one button start&stop, optional default product
Provide High precision automatic foreign detection, It can effectively identify metal, ceramic, glass, bone, shell and other malignant foreign matter in the product
Sensitivity adjustment, alarm management, powerful data statistics report
The detection sensitivity reaches the industry's highest standard Intelligent algorithm based on in-depth learning of AI
Tool-free for conveyor belt and protective curtains

Dimensions and Appearance

UNX4015N-footprint
