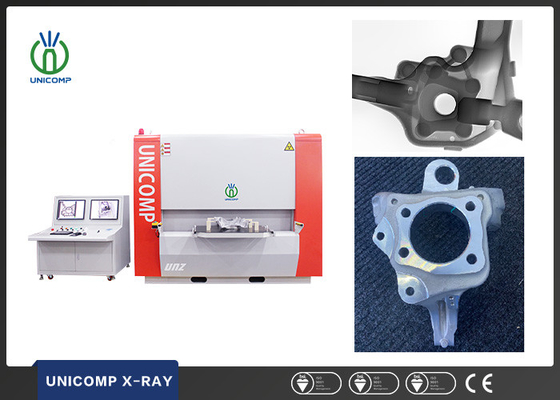

Industrial Unicomp NDT X Ray Inspection Machine For Steering Knuckle / Welding Parts / Castings

Industrial X ray Unicomp NDT inspection machine UNZ225 for steering knuckle welding parts and castings porosity inspection

The UNZ series is one of Unicomp Technology most popular models for aluminum casting, aerospace components and steel pipe. It offers an excellent balance of power and space sensitivity. The system can handle products up to 120cm in size while seated nicely in your failure analysis lab or busy production line.

SYSTEM CAPABILITIES

• Advanced 2D X-ray inspection
• Overall Maximum System Resolution: ~5 microns
• 120cm diameter x 120cm tall nominal part envelope
• Comprehensive acquisition, processing and archival program with user-friendly interface
• High performance image processing and measurement functions
• Non-proprietary multiple image format

X-RAY SOURCE

• Micro-focus X-ray tube
• Voltage Range: 225 kV
• Minimum Focal Spot Size: ~5 microns

X-RAY DETECTOR

• Digital X-ray detector types: Flat Panel
• Grade Options: Standard, Premium,
• Detector Size: up to 120 cm x 120 cm

MANIPULATOR

• Maximum Sample Weight: 300kg

Most NDT X-ray systems could provide quality assurance in a variety of settings, which include but are not limited to:

• Aviation
• Construction
• Manufacturing
• Industrial Plants (Nuclear, Petrochemical, Power, Refineries, Fabrication Shops, etc.
• Pipelines
• Railways
• Food industry

CABINET

• External Dimension: 3200mm*3873mm*3277mm(L*W*H)
• Cabinet Features: interior lighting, sliding access door, leaded glass viewing window
• Exact specifications vary depending on tube, detector, and other optional configurations.
