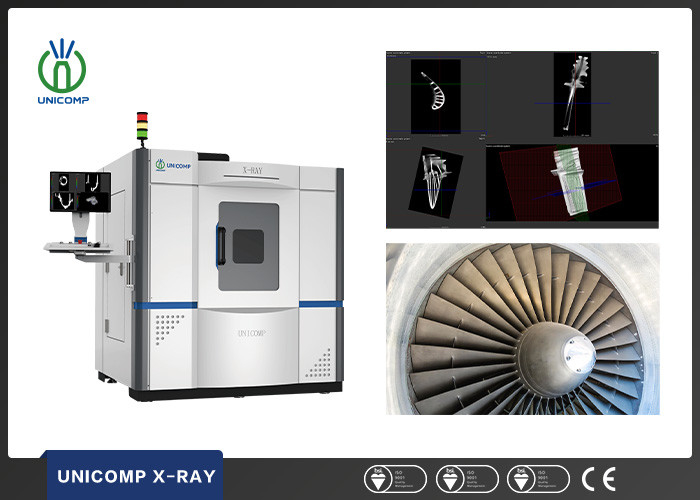

NDT Computed Tomography Machine Unicomp UNCT1000 160KV Engine Blade X Ray Machine
Basic Properties
Place of Origin:
China
Brand Name:
UNICOMP
Certification:
CE
Model Number:
UNCT1000
Trading Properties
Minimum Order Quantity:
1 Set
Price:
Can Negotiate
Payment Terms:
T/T, L/C
Supply Ability:
10 sets per month
Product Summary
Engine blade X-Ray machine NDT Computed tomography machine Unicomp 160KV 3D CT Machine model UNCT1000 for airplane engine blade defects testing Function Application: Equipment Features: Powerful Function: DR and CT dual system, Tomography, 3D rebulid and analysing. High Safety: Multiple safety ...
Product Details
Highlight:
160KV X Ray machine
,Unicomp Computed Tomography Machine
,Engine Blade X Ray Machine
Origin:
China
Weight:
4000KG
Tube Voltage:
0-160KV
Dimension:
2017(W)×1800(D)×2145(H)mm
Generator Power:
480W
Brand:
Unicomp
Product Description
Engine blade X-Ray machine NDT Computed tomography machine Unicomp 160KV 3D CT Machine model UNCT1000 for airplane engine blade defects testing
Function Application:
Equipment Features:
-
Powerful Function: DR and CT dual system, Tomography, 3D rebulid and analysing.
-
High Safety: Multiple safety protection measurements, meets all the international safety standards.
-
User Friendly: User friendly system, easy operation.
-
High Cost-effective: Wide range applications, highly intergrated design.
Technical Specifications:
| System Summary | |
| Footprint | 2017(W)×1800(D)×2145(H)mm |
| Machine Weight | ≈ 4000 kg |
| X-Ray Safety | <1μSv/h (Meets All International Standards) |
| Power Supply | AC 380V, 50/60Hz |
| Power Consumption | 9 kW |
| Console | Highly intergrated design |
| X-Ray Tube | |
| Tube Type | Sealed |
| Focus Spot Size | 0.5 |
| Voltage | 0~160kV (Adjustable) |
| Tube Consumption | 480W |
| Imaging System | |
| Detector | A-Si |
| Pixel Size | 139μm |
| Effective Detection Area | 427*427mm |
| Pixel Matrix | 3072*3072 |
| Motion Control System | |
| Max. Inspection Area | ф550*550mm |
| Max. Loading Weight | 10 kg |
| Software | |
| Coordinate measurement module, design parts/objects comparison module, wall thickness analysis module, pore inclusion analysis module, expanded version of pore/inclusion analysis module, fiber composite material analysis module, expanded version of pore/inclusion analysis module, manufacturing geometry correction module, volume grid calculation module, structural mechanics simulation module, transfer field simulation module and other functions are optional. | |
| * Specifications are subject to change without notice, All trademarks are the property of the system maker. | |
X-Ray Images:
Footprint:
