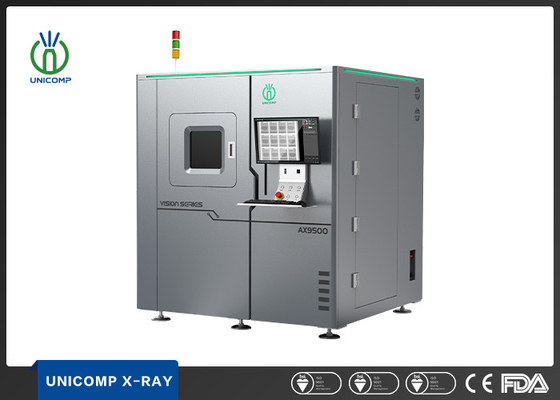

High Precision UNICOMP X Ray CT Machine AX9500 For Accurate PCB / BGA Inspection
Basic Properties
Place of Origin:
China
Brand Name:
UNICOMP
Certification:
CE, FDA
Model Number:
AX9500
Trading Properties
Minimum Order Quantity:
1Set
Price:
can negotiate
Payment Terms:
T/T, L/C
Supply Ability:
300 sets per month
Product Summary
High-precision CT machine AX9500 UNICOMP X-Ray Computed Tomography System for Accurate PCB and BGA Inspection Fully upgraded new products, can perform CT detection on BGA, CSP, flip chips, LEDs and other semiconductors, can also be used for SMT welding analysis, 3D tomography CT scanning system ...
Product Details
Highlight:
UNICOMP X Ray CT Machine
,High Precision UNICOMP X Ray
,UNICOMP X Ray For Accurate PCB
Name:
Unicomp X-ray Inspection Machine
Application:
SMT, EMS,BGA, Electronics, CSP , LED , Flip Chip , Semiconductor
Industry:
Electronics Industry
X-Ray Leakage:
< 1uSv/h
Product Description
High-precision CT machine AX9500 UNICOMP X-Ray Computed Tomography System for Accurate PCB and BGA Inspection
Fully upgraded new products, can perform CT detection on BGA, CSP, flip chips, LEDs and other semiconductors, can also be used for SMT welding analysis, 3D tomography CT scanning system (planar CT + cone beam CT)
Applications
Widely Used in semiconductor, SMT, photovoltaic, ceramic products and other special industries, can also be used to detect auto parts, aluminum die-casting mold castings, molded plastic parts, etc.
Specifications
| System Summary | |
| Footprint | 1700(W)*1660(D)*1900(H)mm |
| Machine Weight | ≈2700kg |
| Max.Tube Power | 64W |
| Max.Target Power | 15W |
| Max.Voltage / Current | 160kV/1000μA |
| X-Ray Leakage | <0.5μSv/h |
| Imaging System | |
| Tube Type | Open tube |
| Resolution | 1 μm(Optional 0.5μm) |
| Detector | FPD |
| System Magnification | 600X |
| Inspection Area | |
| Max. Inspection Dimension | 530*470mm |
| Max.Load Dimension | 600*545mm |
| Max.Inspection Area (XL Size) | 610*1200mm |
| Motion Control Mode | Joystick Mouse& Keyboard |
| Detector Angle | 360° full viewing angle, 2*70 degree tilt |
| * Specifications are subject to change without notice, All trademarks are the property of the system maker. | |

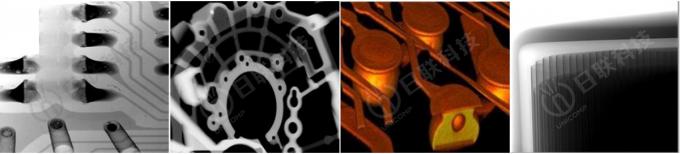

X-Ray images
